Flush Pull Mortise Lock with Thumbturn
Request a Quote

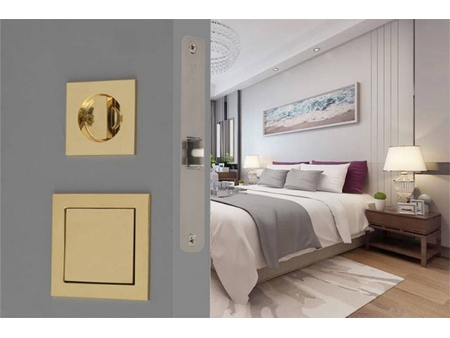

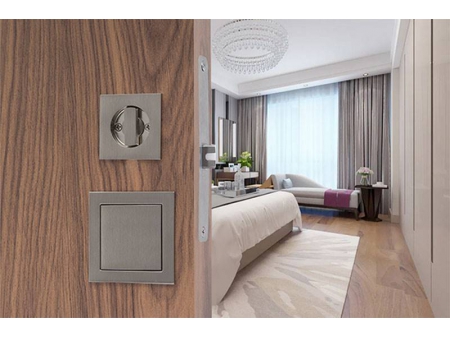

- Flush pull mortise lever lock with thumbturn is designed without keys. The door can be locked by inside thumbturn and unlocked from outside using a coin. This design enables a quick unlock from the outside in case of an emergency when the door is locked from inside.
- Besides, a status indicator is also optional to show whether the door is locked or unlocked.
- Japanese advanced technology is adopted for surface treatment for better color adhesion and corrosion resistance.
Color
- Nickel plating
- Champagne gold
- Matte black
- Customized colors

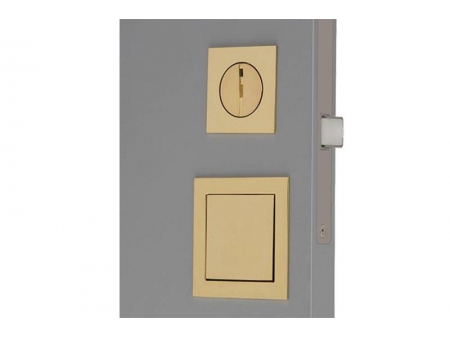

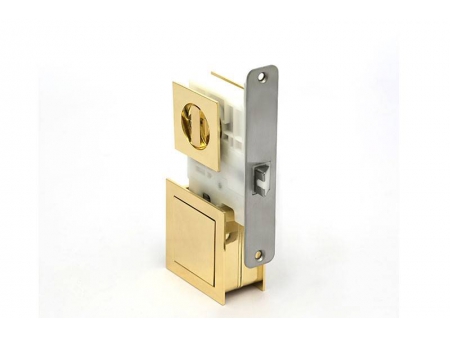

MG4812-X

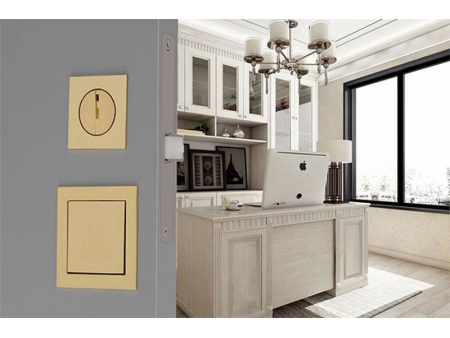

- Switching status of the door can be displayed.

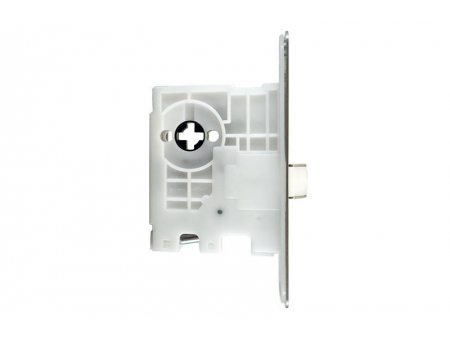

- Lock case: POM
- Lever handle: Aluminum alloy
- Bolt: POM and stainless steel
- Axe distance: 58mm
- Backset: 51mm
- Center distance of the mounting hole (for lever handle): 23.6mm
- Center distance of the mounting hole (for thumbturn): 25mm
- Door thickness: 33-42mm

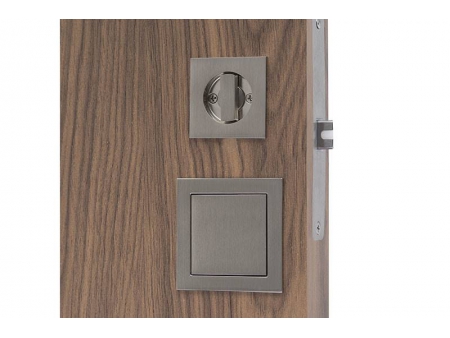

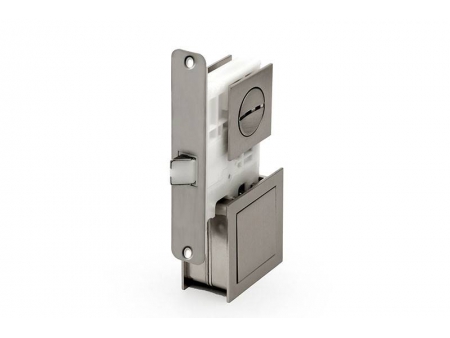

MG4813-X

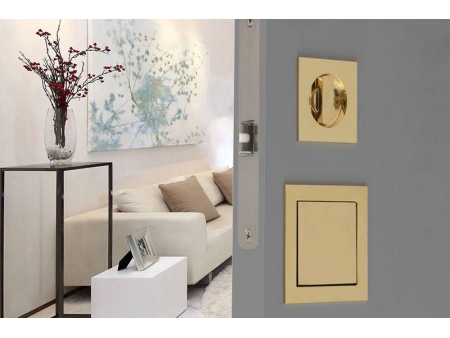

- Lock the door by inside thumbturn and unlock the door from outside by using a coin.
- Lock case: POM
- Lever handle: Aluminum alloy
- Bolt: POM and stainless steel
- Axe distance: 58mm
- Backset: 51mm
- Center distance of the mounting hole (for lever handle): 23.6mm
- Center distance of the mounting hole (for thumbturn): 25mm
- Door thickness: 33-42mm
Packaging and transportation
