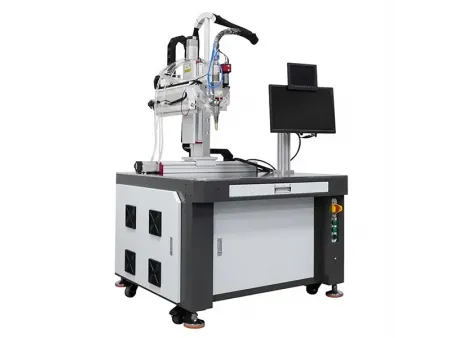

Automatic Fiber Laser Welding Machine
- Laser Power: 1500 / 2000 / 3000W
- Repeatability Accuracy: 0.05mm
- XYZ Travel: 500X300X300mm
- Laser Wavelength : 1064nm
The automatic fiber laser welding machine (platform type) is designed specifically for large-scale manufacturing scenarios, with core advantages of full automation, high stability, and millimeter-level precision. It employs a high-power fiber laser, featuring a spot diameter of ≤0.1mm and precisely controllable heat input (fluctuation <2%). This enables high-speed seamless welding of materials such as stainless steel, aluminum alloys, and titanium alloys, achieving weld strengths of over 95% of the base material with smooth, oxidation-free surfaces. The equipment integrates an intelligent motion platform and a CCD vision positioning system, supporting offline programming and real-time correction, with a repetitive positioning accuracy of ±0.02mm. It is suitable for precision welding demands in applications like automotive components, battery trays, and 3C electronics. Its modular structure (total footprint <5m²) allows for seamless integration into smart production lines, with a single machine daily capacity exceeding 3000 pieces and a yield rate of ≥99.5%, making it the preferred tool for quality and efficiency enhancement in high-end manufacturing.
Stainless steel, aluminum alloy, copper, brass, galvanized sheet, nickel-plated parts, and dissimilar metals such as copper-aluminum composites, steel-aluminum hybrid structures, etc.
| Laser Wavelength | 1064nm | 1064nm | 1064nm |
| Output Fiber Length | 10M | 10M | 10M |
| Maximum Laser Power | 1500W | 2000W | 3000W |
| Rated Power | 6KW | 7KW | 8KW |
| Power Configuration | 220V/50HZ | 220V/50HZ | 380V/50HZ |
| Light Spot Adjustment Range | 0.1-5MM | 0.1-5MM | 0.1-5MM |
| Laser Frequency | 1-10000HZ | 1-10000HZ | 1-10000HZ |
| Cooling System | Cw1000 | Cw1500 | Cw2000 |
| Aiming and Positioning | CCD, Red Light | CCD, Red Light | CCD, Red Light |

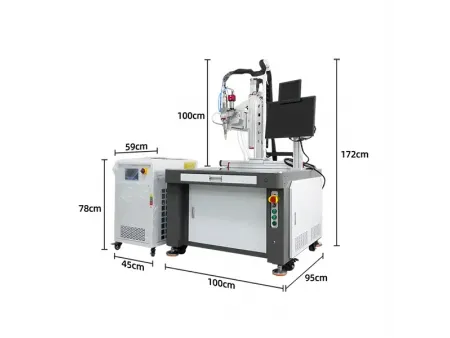

| XYZ Travel | 500X300X300MM |
| Positioning Accuracy | 0.05MM |
| Repeatability Accuracy | 0.05MM |
| Maximum Moving Speed | 200MM/S |
| Worktable Size | 1300X1000MM |
| Optional Components | Servo / Stepper Motor, Rotating Axis, Extended Travel |
Fiber laser source
We provide renowned domestic and international brand laser sources for our equipment, such as Raycus, JPT, MAX, SUPER, and IPG; these feature high pump conversion efficiency, low power consumption, and excellent beam quality.
Three-axis precision motion platform
Utilizes Yaskawa/Hiwin servo motors and ball screw transmission, offering a repetitive positioning accuracy of ±0.01mm and an empty travel speed of 500mm/s. It supports complex trajectory welding, such as helical and curved seams.
CCD vision positioning system
A megapixel camera coupled with image algorithms enables dynamic positioning at a motion speed of 2m/s with an error of ≤0.01mm, solving the efficiency issues of traditional static positioning.
QBH welding head
The gun head, equipped with replaceable gas nozzles (e.g., 30°, 60°, 90° nozzles), easily handles complex positions like deep cavities and corners, achieving precise welding at any angle.
Control software
Features preset welding parameters, supports offline programming and real-time monitoring, and allows for AutoCAD/DXF file import to generate welding paths with one click, enabling novice operators to get started in 1 hour.
Copper nozzles
Made from high-purity red copper or tungsten-copper alloy, with electrical conductivity up to 98% IACS and a melting point of 1083℃. They can withstand high-temperature oxidation during continuous welding, extending their service life by over 30% compared to ordinary alloy nozzles.
Protective lenses
Made from JGS1 quartz or ZnSe zinc selenide, with light transmittance ≥99.8% and laser damage threshold >15J/cm². They are suitable for high-power equipment above 2000W, reducing energy loss. Double-sided anti-reflective coating reduces reflectivity to below 0.2%, preventing secondary light pollution.
- Protective Lenses
- Copper Nozzles
- Welding Wire
