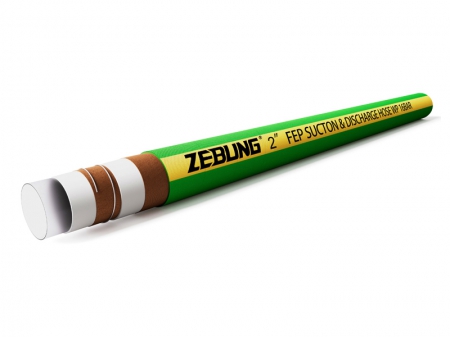

FEP Transfer Hose
FEP Suction and Discharge Hose

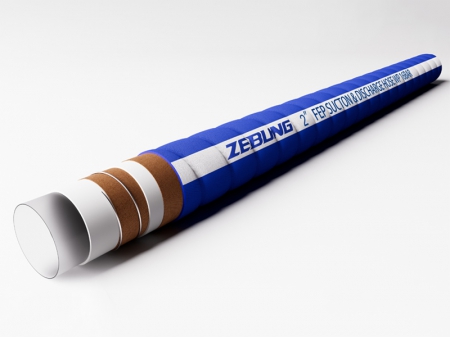

Corrugated FEP Suction and Discharge Hose

Basic Information

Inner tube: Chemical-resistant FEP (fluorinated ethylene propylene)
Appearance: White and smooth surface
Reinforcement layer: Fabric cord wrapping and spiral steel wire
Outer cover: EPDM rubber, offering excellent chemical and weather resistance
Color: Available in black or green
Operating temperature: -40°C to 150°C (intermittently up to 180°C)

Applications
Widely used in industries such as petroleum, food and beverages, chemicals, cosmetics, active pharmaceutical ingredients (API), and biopharmaceuticals. It is suitable for transporting various corrosive chemicals, excluding substances like chlorine trifluoride, chlorine gas, dry fluorine, dioxygen difluoride, phosgene, and molten alkali metals (e.g., sodium). Additionally, it is ideal for unloading between mobile and stationary units in chemical, pharmaceutical, and other related sectors, including road and rail tankers.

Features
Featuring a smooth inner wall, the hose ensures maximum flow rates and facilitates easy cleaning, even at steam temperatures of up to 150°C. It offers excellent chemical and mechanical properties, making it suitable for demanding applications. The inner tube complies with FDA 21.CFR.177.1550, ensuring reliability in industries with strict material safety requirements.

Standard: EN12115/FDA 21.CFR.177.1550

Technical Parameters
Working Pressure: 230 psi

Item Code	Inner Diameter		Outer Diameter	Working Pressure		Burst Pressure		Weight	Max. Length
Item Code	mm	inch	mm	bar	psi	bar	psi	kg/m	m
FEPSD019-230	19	3/4"	34	16	230	64	920	0.97	40
FEPSD025-230	25	1"	40	16	230	64	920	1.20	40
FEPSD032-230	32	1-1/4"	47.5	16	230	64	920	1.51	40
FEPSD038-230	38	1-1/2"	54.2	16	230	64	920	1.87	40
FEPSD051-230	51	2"	68	16	230	64	920	2.58	40
FEPSD064-230	64	2-1/2"	81.6	16	230	64	920	3.30	40
FEPSD076-230	76	3"	93.6	16	230	64	920	3.85	40
FEPSD102-230	102	4"	123.2	16	230	64	920	6.35	40

Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.

Working Pressure: 150 psi

Item Code	Inner Diameter		Outer Diameter	Working Pressure		Burst Pressure		Weight	Max. Length
Item Code	mm	inch	mm	bar	psi	bar	psi	kg/m	m
FEPSD019-150	19	3/4"	32	10	150	40	600	0.83	40
FEPSD025-150	25	1"	38	10	150	40	600	1.02	40
FEPSD032-150	32	1-1/4"	45.5	10	150	40	600	1.31	40
FEPSD038-150	38	1-1/2"	52.2	10	150	40	600	1.63	40
FEPSD051-150	51	2"	65.2	10	150	40	600	2.11	40
FEPSD064-150	64	2-1/2"	79.2	10	150	40	600	2.75	40
FEPSD076-150	76	3"	91.2	10	150	40	600	3.22	40
FEPSD102-150	102	4"	120.4	10	150	40	600	5.48	40

Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.
