Cooling Water Hose for Blow Molding Machine
Request a Quote

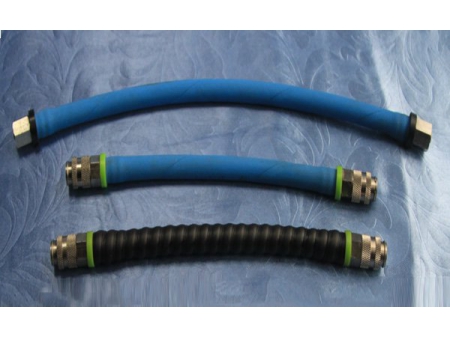

The hoses are mainly used for transporting the cooling water for the molds on Krones blowing machines. We import the hydraulic hoses from Parker to ensure the maximum allowable pressure. Our cooling water hose for blow molding machine is of high flexibility thus you can match is with different connectors according to your machines’ situation.
Parameters
| | ||

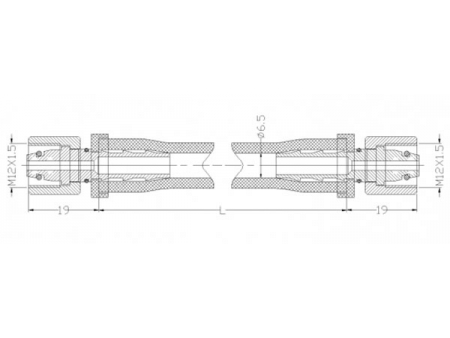

| Inner Diameter (mm) | 6.5 | |
| Maximum Allowable Pressure (Bar) | 21 | |
| Connector Specification (mm) | M12X1.5 | |
| Length L (mm) | customizable | |
| | ||

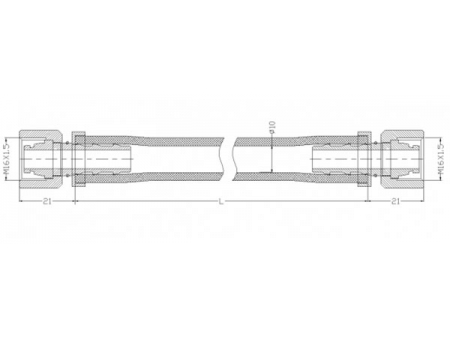

| Inner Diameter (mm) | 10 | |
| Maximum Allowable Pressure (Bar) | 16 | |
| Connector Specification (mm) | M16X1.5 | |
| Length L (mm) | customizable | |
| | ||
| Inner Diameter (mm) | 10 | |
| Maximum Allowable Pressure (Bar) | 16 | |
| Connector Specification (mm) | One-way quick-change connector (φ 13 female connector) for one side, M16X1.5 for the other side | |
| Length L (mm) | customizable | |
| | ||

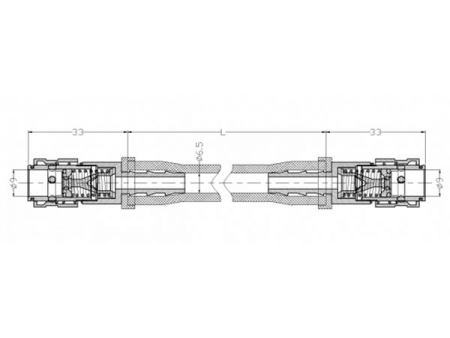

| Inner Diameter (mm) | 6.5 | |
| Maximum Allowable Pressure (Bar) | 21 | |
| Connector Specification (mm) | One-way quick-change connector (φ 9 female connector) | |
| Length L (mm) | customizable | |
Note: different kinds of connecters are available according to customers’ requirements.
