Components for tissue machinery
The pulp mixer is a type of paper machine component that enables the mixing of paper pulp, also liquid chemicals. It is a cost-effective solution that can serve as a substitute for the pulp bleaching tower in the pulping process, thereby reducing equipment investment and operating costs, presenting an economical solution that can replace the need for additional equipment. Pulp stock mixer is primarily used in paper mills, where it enables thorough mixing of pulp or chemicals.
Our company can provide two types of pulp mixers: pipeline pulp mixer and dynamic/static pulp mixer.
| Inlet Size | DN80-DN200 |
| Outlet Size | DN100-DN250 |
| Bottom Discharge Port. | DN65 (Dynamic & Static Pulp Stock Mixer) |
| Infeed Pulp Concentration | 2.5-3.5% |
| Capacity | 160-200m³/h |
- It can simultaneously mix multiple types of pulp, replacing the functions of pulp blending tanks and thickener tanks, reducing floor space, and lowering investment and operating costs.
- It has a compact structure, ensures uniform mixing, offers flexible installation, is easy to clean, occupies a small footprint, and provides fast consistency adjustment.
- Easy maintenance and a long service life
- The parts in contact with the pulp are all made of polished 304 stainless steel, with no pulp residue on the inner wall, eliminating the need for cleaning the stock blending tank and pulp thickener.

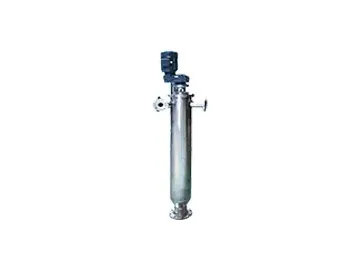

The in-line pipe mixer is a device that achieves uniform mixing of fluids as they flow through a pipeline, under the influence of dynamic and static mixing elements. This pulp mixing equipment plays a crucial role in the pulp and paper production process, where it is used to thoroughly mix or adjust the consistency of various pulp materials. By facilitating the pumping of these materials to the next equipment in the process, the mixer ensures seamless production operations.

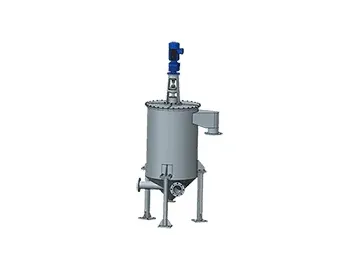

The dynamic and static pulp mixer is an advanced piece of equipment that comprises a conical tank and a powerful stirring device. In the pulp and paper production process, pulp materials are made to pass through the conical tank and undergo thorough mixing by the stirring device. The mixer ensures that the pulp is homogeneously mixed before being discharged from the upper outlet of the tank.
