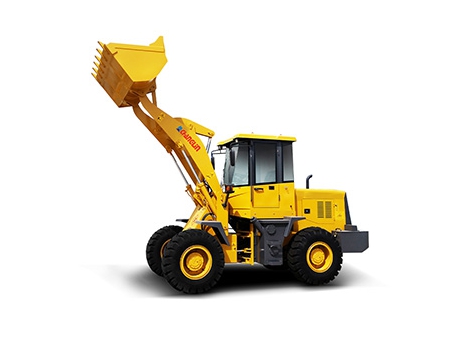

Wheel Loader 957S

Wheel Loader 957S
Wheel Loader 957S
Wheel Loader 957S
Request a Quote
Website:
  • Wheel Loader 957S

Our 957S wheel loader is equipped with high quality SHANGCHAI SC11CB220G2B1 engine or Cummins engine. It uses 4 forward and 3 reverse power shift transmission. The front end loader is also provided with dual-pump confluence hydraulic system and load-sensing fully hydraulic steering system. What's more, it adopts KD switch with simple and efficient operation, as well as sealed cylinder with high sealing capacity and reliability.

  • Rated Load: 5000KG
  • Rated Output: 162kW
  • Rated Bucket Capacity: 3.0m³
Model 957S
Length×Width×Height(mm) 8120×2800×3450
Rated load (Kg) 5000
Rated bucket capacity(m³) 3.0
Operating weight(Kg) 17200
Diesel engine Cummins 6LTAA 9.3/ShangChai SC11CB220G2B1
Rated output(KW) 158/162
Transmission case ZF
Gear positions 4 forward gear, 3 reverse gear
Max. drawing force(KN) 170
Max. dump clearance(mm) 3136
Dump reach (mm) 1121
Wheel base(mm) 3300
Total cycle time (s) 11
    1. Rated Load 2000Kg Rated Output 65kW Rated Bucket Capacity 1.0m³
    1. Rated Load 3000Kg Rated Output 97/92kW Rated Bucket Capacity 1.7m³
    1. Rated Load 4000Kg Rated Output 132kW Rated Bucket Capacity 2.3m³
    1. Rated Load 5000Kg Rated Output 162kW Rated Bucket Capacity 3.1m³
    1. Rated Load 5000Kg Rated Output 162kW Rated Bucket Capacity 3.1m³
    1. Rated Load 5000Kg Rated Output 162kW Rated Bucket Capacity 3.1m³
    1. Rated Load 5500Kg Travel Motor 200kW Rated Bucket Capacity 4.5m³
    1. Rated Load 6000Kg Rated Output 174.5kW Rated Bucket Capacity 3.7m³
    1. Rated Load 6000Kg Travel Motor 200kW Rated Bucket Capacity 4.5m³
    1. Rated Load 7500Kg Rated Output 216kW Rated Bucket Capacity 4.2m³
    1. Rated Load5000Kg Rated Output 162kW Rated Bucket Capacity 3.0m³
