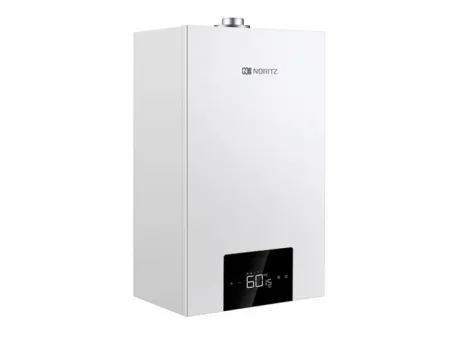

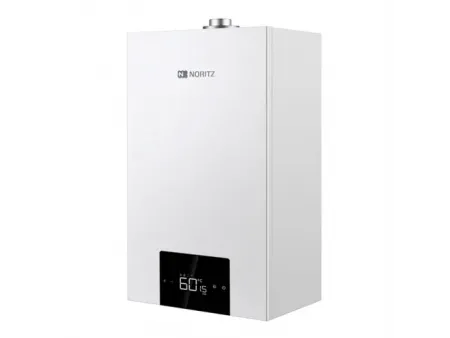

NORITZ Tankless Water Heater, Model GQH-27H8FFA
27kW Gas Combination Boiler
- Rated heat input 27 kW
- Rated heat output 24 kW
- Minimum heat output 8.1 kW
- Hot water flow (ΔT = 25°C) 12 L/min
This 27kW standard gas wall-hung combi boiler is built for residential use, offering a reliable and cost-effective heating solution for everyday use at homes. Compared with conventional residential boilers, it provides a higher and more stable domestic hot water supply to better support daily demand.
With a proven and stable burner design and broad system compatibility, it works well with both floor heating and radiator systems. At the same time, it also delivers a comfortable and consistent hot water supply for larger-volume shower use.
| Model | GQH-27H8FFA |
| Rated heat input | 27kW |
| Rated heat output | 24kW |
| Minimum heat output | 8.1kW |
| Minimum DHW output | 9.5kW |
| Thermal Efficiency | ≥89% |
| Hot water flow (△T=25℃) | 12L/min |
| Dimensions (H × W × D) | 740 × 440 × 310 mm |
| Weight | 32.5kg |
| Water-flow servo motors | 0 |
| Staged combustion | No |
| Circulation pump | 1 |
| 0.5oC temperature step control | No |
| Heating temperature range | 30-80℃ |
| Hot water temperature range | 35-60℃ |
| Noise level (sound power /sound pressure) | ≤53dB / ≤39dB |
| Wi-Fi | No |
Combustion Fan
A fixed-speed combustion fan is used for stable operation and broad compatibility. It starts reliably and is suitable for higher-load conditions.
Electronic Controller
The controller enables precise temperature regulation and efficient system performance. It incorporates multiple safety protections, user-friendly controls, and integrated fault diagnostics to make troubleshooting and maintenance easier.
Sealed Combustion Chamber
The sealed combustion chamber is designed with insulation and sound-reducing materials to help protect internal components and limit operating noise. The H-series wall-hung boilers incorporate further noise-reduction measures, with sound levels as low as 42 dB(A)*.
Noritz Water Pump
Noritz water pumps have smart self-protection features integrated that help reduce the risk of faults over time. They are designed for reduced operation noise to improve comfort in daily use.
Five-Stage Heat Exchanger Design
A five-pass heat exchanger helps maintain a compact overall structure while improving heat transfer efficiency. With enlarged main tubes and an extended heat exchange path, it allows more heat to be absorbed and utilized effectively.
Italian SIT Proportional Valve
An Italian SIT proportional gas valve is used to regulate gas flow and pressure. Its precise and responsive control helps the burner operate more smoothly and waste less gas for improved efficiency.
Expansion Tank
The expansion tank absorbs pressure fluctuations in the water circuit as temperatures rise and fall. By stabilizing pressure, it protects key components and maintain consistent operation over time.
- 30-80°C wide heating range, suitable for different rooms and seasonal needs
- Compatible with Japanese-style dry underfloor heating systems for faster warm-up
- Stable hot water temperature, supporting multiple outlets at the same time
- Designed with layered noise control to help keep operation quiet
- Active freeze protection for reliable heating during colder weather
The Noritz H Series wall-hung gas combination boilers provide an integrated solution for both space heating and hot water for domestic use. They are suitable for multiple areas of the home, including the living room, kitchen, bedroom, and bathroom. Compatible with Japanese-style dry floor heating systems, they offer faster heating for improved comfort. Compared to conventional wall-hung boilers, the H Series offers a more stable temperature range and supports a more consistent whole-home hot water experience.
