HS190 - Brass Threaded Fittings Manufacturer

HS190 - Brass Threaded Fittings

Request a Quote

View All: http://brass-pipefittings.com/3-1-brass-threaded-fittings.html

Honson HS190 brass threaded fittings are well-suited for the use in a wide range of applications such as heating, rain water, plumbing system and sanitary system. They are durable and easy to install.

The wide range of thread fittings dimensions from 1/4” up to 4” as well as different surface treatment offer installers the option of choosing the right fittings for the application.

Features

Ideal for use in plumbing system and heating installations
CE approved
Compliant with EN1254-4 standard
CW617N-4MS brass material according to UNE-EN12165.
Fast and easy installation.
Wide range of fitting dimensions from 1/4” up to 4”.

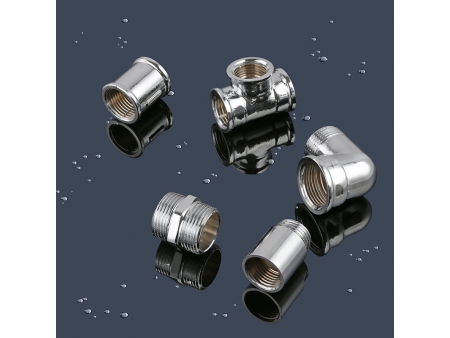

Different surface treatment options, raw, chrome-plated, nickel-plated
More than 70 varieties
Marked for full traceability

Brass Threaded Straight Connector

Equal Socket F×F, HS190-001

SIZE	G	L
1/4''	1/4''	22
3/8''	3/8"	25
1/2''	1/2"	30
3/4''	3/4"	34
1''	1"	36
1 1/4''	1 1/4"	43
1 1/2''	1 1/2"	53
2''	2''	65
2 1/2''	2 1/2"	68
3''	3"	70
4''	4"	80

Reduced Socket F×F, HS190-002

SIZE	G	G1	L	L1
1/2''×3/8''	1/2"	3/8"	21.5	13
3/4''×1/2''	3/4"	1/2"	26	14.5
1'' ×1/2''	1"	1/2"	28	16
1''×3/4''	1"	3/4"	29	16
1 1/4''×1/2''	1 1/4"	1/2"	30.5	18.5
1 1/4''×3/4''	1 1/4"	3/4"	31.5	18.5
1 1/4''×1''	1 1/4"	1"	33	18.5
1 1/2''×1''	1 1/2"	1"	33	19.5
1 1/2'' ×1 1/4''	1 1/2"	1 1/4"	35	19.5
2''×1''	2"	1"	37	23
2'' ×1 1/4''	2"	1 1/4"	39	23
2'' ×1 1/2''	2"	1 1/2"	40	23

Equal Nipple M×M, HS190-003

SIZE	G	L	L1
1/8''	1/8''	19.5	8
1/4''	1/4''	21	8.5
3/8''	3/8"	22.5	9
1/2''	1/2"	25.5	10.5
3/4''	3/4"	29	12
1''	1"	31.5	13
1 1/4''	1 1/4"	35.5	15
1 1/2''	1 1/2"	39	16.5
2''	2"	45	19
2 1/2''	2 1/2"	58	25
3''	3"	63	27
4''	4"	81	35

Reduced Nipple M×M, HS190-004

SIZE	G	G1	L	L1	L2
1/4''×1/8''	1/4"	1/8"	20.5	8.5	8
3/8''×1/8''	3/8"	1/8"	21	7.5	9
3/8''×1/4''	3/8"	1/4"	21	7.5	9
1/2''×1/8''	1/2"	1/8"	23	7.5	11
1/2''×1/4''	1/2"	1/4"	23	7.5	11
1/2''×3/8''	1/2"	3/8"	24.5	9	11
3/4''×3/8''	3/4"	3/8"	26.5	9	12.5
3/4''×1/2''	3/4"	1/2"	29	11.5	12.5
1''×1/2''	1"	1/2"	30	11.5	14
1''×3/4''	1"	3/4"	31	12	14
1 1/4''×1/2''	1.1/4"	1/2"	33	11.5	16
1 1/4''×3/4''	1.1/4"	3/4"	34.5	13	16
1 1/4''×1''	1.1/4"	1"	35	13.5	16
1 1/2''×1/2''	1.1/2"	1/2"	33.5	11.5	16.5
1 1/2''×3/4''	1.1/2"	3/4"	35	13	16.5
1 1/2''×1''	1.1/2"	1"	35	13	16.5
1 1/2''×1 1/4''	1.1/2"	1.1/4"	38	16	16.5
2''×1/2''	2"	1/2"	37.5	11.5	20
2''×3/4''	2"	3/4"	39	13	20
2''×1''	2"	1"	40	14	20
2''×1 1/4''	2"	1.1/4"	42	16	20
2''×1 1/2''	2"	1.1/2"	42.5	16.5	20
2 1/2''×2''	2.1/2"	2"	54	20	25
3''×2''	3"	2"	57	20	27
3''×2 1/2''	3"	2 1/2"	62	27	25
4''×2 1/2''	4"	2 1/2"	71	35	25
4''×3''	4"	3"	73	35	27

Hexagonal Equal Union M×F, HS190-005

SIZE	G	G1	L	L1	L2
1/4''	1/4''	1/4''	18.5	8	9
3/8''	3/8"	3/8"	18.5	8.5	9
1/2''	1/2"	1/2"	22.5	10.5	11
3/4''	3/4"	3/4"	26.5	12	12.5
1''	1"	1"	30.5	13	15
1 1/4''	1 1/4"	1 1/4"	33	15	16
1 1/2''	1 1/2"	1 1/2"	35	15.5	17
2''	2"	2"	42.5	19.5	20

Hexagonal Reduced Union M×F, HS190-006

SIZE	G1	G	L	L1	L2
1/8''×1/4''	1/8"	1/4"	18.5	7.5	9
1/4''×3/8''	1/4"	3/8"	20	8	10
1/4''×1/2''	1/4"	1/2"	21	8	11
3/8''×1/8''	3/8"	1/8"	19	8.5	9
3/8''×1/4''	3/8"	1/4"	19	8.5	9
3/8''×1/2''	3/8"	1/2"	21.5	8.5	11
3/8''×3/4''	3/8"	3/4"	23	8.5	12
1/2''×3/8''	1/2"	3/8"	21.5	11	8.5
1/2''×3/4''	1/2"	3/4"	25	11	12
1/2''×1''	1/2"	1"	28	11	13.5
1/2''×1 1/4''	1/2"	1 1/4"	30	11	16
3/4''×1/2''	3/4"	1/2"	24	12	11
3/4''×1''	3/4"	1"	29	12	14.5
3/4''×1 1/4''	3/4"	1 1/4"	31	12	16
1''×3/4''	1"	3/4"	27	13	12
1''×1 1/4''	1"	1 1/4"	32	13	16
1''×1 1/2''	1"	1 1/2"	34	13	17
1''×2''	1"	2"	38	13	19.5
1 1/4''×1 1/2''	1 1/4"	1 1/2"	36	16	17
1 1/4''×2''	1 1/4"	2"	40	16	19.5
1 1/2''×2''	1 1/2"	2"	40.5	17	19.5
2''×1 1/2''	2"	1 1/2"	34	19	17
2''×2 1/2''	2"	2 1/2"	49	19	25.5

Extensions M×F, HS190-022

SIZE	D	G	G1	L	L1
3/8"×15	20	3/8"	3/8"	24	15
3/8"×30	20	3/8"	3/8"	39	30
3/8"×50	20	3/8"	3/8"	59	50
3/8"×100	20	3/8"	3/8"	109	100
1/2"×10	25	1/2"	1/2"	20	10
1/2"×15	25	1/2"	1/2"	25	15
1/2"×20	25	1/2"	1/2"	30	20
1/2"×25	25	1/2"	1/2"	35	25
1/2"×30	25	1/2"	1/2"	40	30
1/2"×40	25	1/2"	1/2"	50	40
1/2"×50	25	1/2"	1/2"	60	50
1/2"×60	25	1/2"	1/2"	70	60
1/2"×70	25	1/2"	1/2"	80	70
1/2"×80	25	1/2"	1/2"	90	80
1/2"×90	25	1/2"	1/2"	100	90
1/2"×100	25	1/2"	1/2"	110	100
3/4"×10	30.5	3/4"	3/4"	22	10
3/4"×15	30.5	3/4"	3/4"	27	15
3/4"×20	30.5	3/4"	3/4"	32	20
3/4"×25	30.5	3/4"	3/4"	37	25
3/4"×30	30.5	3/4"	3/4"	42	30
3/4"×40	30.5	3/4"	3/4"	52	40
3/4"×50	30.5	3/4"	3/4"	62	50
3/4"×60	30.5	3/4"	3/4"	72	60
3/4"×70	30.5	3/4"	3/4"	82	70
3/4"×80	30.5	3/4"	3/4"	92	80
3/4"×90	30.5	3/4"	3/4"	102	90
3/4"×100	30.5	3/4"	3/4"	112	100
1"×10	37.5	1"	1"	23	10
1"×15	37.5	1"	1"	28	15
1"×20	37.5	1"	1"	33	20
1"×25	37.5	1"	1"	38	25
1"×30	37.5	1"	1"	43	30
1"×40	37.5	1"	1"	53	40
1"×50	37.5	1"	1"	63	50

Hexagonal Male Hose Nipple, HS190-023

SIZE	D	G	L	L1	L2
1/4''×10mm	10	1/4"	39.5	25.5	8.5
1/4''×12mm	12	1/4"	42.5	28.5	8.5
3/8''×10mm	10	3/8"	40	27	8.5
3/8''×12mm	12	3/8"	41	28.5	8.5
1/2''×10mm	10	1/2"	42	27	10.5
1/2''×12mm	12	1/2"	43.5	28.5	10.5
1/2''×13mm	14	1/2"	47	32	10.5
1/2''×14mm	14	1/2"	47	32	10.5
1/2''×16mm	16	1/2"	49	34	10.5
1/2''×18mm	18	1/2"	49	34	10.5
1/2''×20mm	20	1/2"	53.5	38.5	10.5
3/4''×20mm	20	3/4"	54	38.5	11.5
3/4''×25mm	25	3/4"	55.5	39	11.5
1''×20mm	20	1"	55.5	38.5	12
1''×25mm	25	1"	56	39	12
1''×27mm	27	1"	56	39	12
1''×30mm	30	1"	56	39	12
1 1/4''×30mm	30	1 1/4"	61.5	39	16
1 1/4''×32mm	32	1 1/4"	61.5	39	16
1 1/4''×35mm	35	1 1/4"	66	43.5	16
1 1/4''×38mm	38	1 1/4"	66	43.5	16
1 1/4''×40mm	40	1 1/4"	69.5	47	16
1 1/2''×38mm	38	1 1/2"	69	43.5	19.5
1 1/2''×40mm	40	1 1/2"	72.5	47	19.5
1 1/2''×45mm	45	1 1/2"	76	50.5	19.5
1 1/2''×50mm	50	1 1/2"	78.5	55.5	19.5
2''×50mm	50	2"	84	53	24
2''×60mm	60	2"	90	59	24
2 1/2''×63mm	63	2 1/2"	92	59	25

Hexagonal Bushing, HS190-028

SIZE	G	G1	L	L1
1/4''×1/8''	1/4"	1/8"	10	8
3/8''×1/8''	3/8"	1/8"	13	9
3/8''×1/4''	3/8"	1/4"	13	9
1/2''×1/8''	1/2"	1/8"	14.5	10.5
1/2''×1/4''	1/2"	1/4"	14.5	10.5
1/2''×3/8''	1/2"	3/8"	14.5	10.5
3/4''×1/8''	3/4"	1/8"	16	11.5
3/4''×1/4''	3/4"	1/4"	16	11.5
3/4''×3/8''	3/4"	3/8"	16	11.5
3/4''×1/2''	3/4"	1/2"	16	11.5
3/4''×5/8''	3/4"	5/8"	16	11.5
1''×3/8''	1"	3/8"	17.5	12.5
1''×1/2''	1"	1/2"	17.5	12.5
1''×3/4''	1"	3/4"	17.5	12.5
1 1/4''×1/2''	1.1/4"	1/2"	19.5	14.5
1 1/4''×3/4''	1.1/4"	3/4"	19.5	14.5
1 1/4''×1''	1.1/4"	1"	19.5	14.5
1 1/2''×1/2''	1.1/2"	1/2"	20.5	15
1 1/2''×3/4''	1.1/2"	3/4"	20.5	15
1 1/2''×1''	1.1/2"	1"	20.5	15
1 1/2''×1 1/4''	1.1/2"	1.1/4"	20.5	15
2''×1/2''	2"	1/2"	25.5	19
2''×3/4''	2"	3/4"	25.5	19
2''×1''	2"	1"	25.5	19
2''×1 1/4''	2"	1.1/4"	25.5	19
2''×1 1/2''	2"	1.1/2"	25.5	19
2 1/2''×1 1/4''	2.1/2"	1.1/4"	28	21
2 1/2''×1 1/2''	2.1/2"	1.1/2"	28	21
2 1/2''×2''	2.1/2"	2"	28	21
3''×1 1/2''	3"	1.1/2"	33	25
3''×2''	3"	2"	33	25
3''×2 1/2''	3"	2.1/2"	33	25
4''×1 1/2''	4"	1.1/2"	44	34
4''×2''	4"	2"	44	34
4''×2 1/2''	4"	2.1/2"	44	34
4''×3''	4"	3"	44	34

Hexagonal Cap, HS190-029

SIZE	G	L
1/8''	1/8''	9.5
1/4''	1/4"	10
3/8''	3/8"	10.5
1/2''	1/2"	12
3/4''	3/4"	13.5
1''	1"	15
1 1/4''	1 1/4"	15
1 1/2''	1 1/2"	16
2''	2"	19

Brass Threaded Elbow

Equal Elbow F×F, HS190-007

SIZE	G	L	L1	H	H1
1/4''	1/4''	15.5	8.5	15.5	8.5
3/8''	3/8"	17.5	8.5	17.5	8.5
1/2''	1/2"	22	11	22	11
3/4''	3/4"	28	13.5	28	13.5
1''	1"	32	14	32	14
1 1/4''	1 1/4"	38	16	38	16
1 1/2''	1 1/2"	40.5	16	40.5	16
2''	2"	51	20	51	20
2 1/2''	2 1/2"	67	25.5	67	25.5
3''	3"	77	27	77	27
4''	4"	95	36	95	36

Reduced Elbow F×F, HS190-008

SIZE	G	G1	L	L1	H	H1
1/2"×3/8"	1/2"	3/8"	21	11	20	8
3/4"×1/2"	3/4"	1/2"	24.5	13.5	24	11
1"×1/2"	1"	1/2"	26.5	14	27	11
1"×3/4"	1"	3/4"	29	14	31	13
1.1/4"×1"	1 1/4"	1"	33	16	34.5	14
1.1/2"×1"	1 1/2"	1"	34	16	36.5	14
1.1/2"×1.1/4"	1 1/2"	1 1/4"	37	16	41	16

Equal Elbow M×F, HS190-009

SIZE	G	G1	L	L1	H	H1
1/4''	1/4''	1/4''	20	7	15	8.5
3/8''	3/8"	3/8"	24.5	9	17	8.5
1/2''	1/2"	1/2"	29	10.5	22	11
3/4"×1/2"	3/4"	1/2"	27	12	24	11
3/4''	3/4"	3/4"	33.5	12.5	28	13
1''	1"	1"	38	13	32	14
1 1/4''	1 1/4"	1 1/4"	45	15	37	15
1 1/2''	1 1/2"	1 1/2"	48	16	40	16
2''	2"	2"	62	19	52	20
2 1/2''	2 1/2"	2 1/2"	77	24	67	25.5
3''	3"	3"	86.5	27	77	27

Long Sweep Bend F×F, HS190-020

SIZE	G	G1	L	L1	H	L1
1/2''	1/2"	1/2"	42	12.5	42	12.5
3/4''	3/4"	3/4"	47	14	47	14
1''	1"	1"	61	16	61	16
1 1/4''	1 1/4"	1 1/4"	72	17	72	17
1 1/2''	1 1/2"	1 1/2"	83	18	83	18
2''	2"	2"	99	22	99	22

Long Sweep Bend M×F, HS190-021

SIZE	G	G1	L	L1	H	H1
1/2''	1/2"	1/2"	42	12.5	38.5	11
3/4''	3/4"	3/4"	47	14	43.5	12.5
1''	1"	1"	61	16	57.5	14.5
1 1/4''	1 1/4"	1 1/4"	72	17	68.5	15.5
1 1/2''	1 1/2"	1 1/2"	83	18	78	16.5
2''	2"	2"	99	22	92	19.5

Equal Elbow M×M, HS190-035

SIZE	G	L	L1	H	H1
3/8"	3/8"	21	8	21	8
1/2"	1/2"	23	8	23	8
3/4"	3/4"	28.5	9	28.5	9
1"	1"	35	11	35	11

Equal Flanged Elbow M×M, HS190-036

SIZE	G	L	L1	H	H1
1/2"	1/2"	26.5	10.5	26.5	10.5
3/4"	3/4"	32.5	12	32.5	12
1"	1"	39	14	39	14

Wallplate Elbow F×F, HS190-037

SIZE	G	L	L1	H	H1	H2
1/2"	1/2"	22	11	37.5	22	11
3/4"	3/4"	28	13.5	47	28	13.5

Equal Elbow M×F (Light Duty), HS190-061

SIZE	G	G1	L	L1	H	H1
3/8''	3/8"	3/8"	21	8.5	20.5	10
1/2''	1/2"	1/2"	24.5	11	26.5	16
1/2"×3/4"	1/2"	3/4"	30	10	25	13.5
3/4''	3/4"	3/4"	30	11.5	27.5	13.5
1''	1"	1"	37	15.5	36	16

Equal Flanged Elbow M×F, HS190-062

SIZE	G	G1	L	L1	H	H1
1/2''	1/2"	1/2"	30	12	26	12
3/4''	3/4"	3/4"	36	14	31	14
1''	1"	1"	46	16	40	17

135 Degree Elbow F×F, HS190-074

SIZE	G	L	L1	H	H1
3/8"	3/8"	16	8.5	16	8.5
1/2"	1/2"	20	11	20	11
3/4"	3/4"	25	13.5	25	13.5
1"	1"	29	14	29	14

135 Degree Elbow M×F, HS190-075

SIZE	G	L	L1	H	H1
3/8"	3/8"	16	8.5	22	9
1/2"	1/2"	20	11	25	10.5
3/4"	3/4"	25	13	30	12.5
1"	1"	29	14	34	13

Brass Threaded Tee

Equal Tee F×F×F, HS190-010

SIZE	G	L	L1	H	H1
1/4''	1/4''	31	8.5	15.5	8.5
3/8''	3/8"	35	8.5	17.5	8.5
1/2''	1/2"	44	11	22	11
3/4''	3/4"	56	13.5	28	13.5
1''	1"	64	14	32	14
1 1/4''	1 1/4"	76	16	38	16
1 1/2''	1 1/2"	81	16	40.5	16
2''	2"	102	20	51	20
2 1/2''	2 1/2"	134	25.5	67	25.5
3''	3"	154	27	77	27
4''	4"	190	31	95	31

Reduced Tee F×F×F, HS190-011

SIZE	G	G1	G2	L	L1	L2	H	H1
1/2''×3/8''×1/2''	1/2"	1/2"	3/8"	42	11	11	20	8.5
3/4''×1/2''×3/4''	3/4"	3/4"	1/2"	48	13	13	25	11
1''×1/2''×1''	1"	1"	1/2"	52	14	14	27.5	11
1''×3/4''×1''	1"	1"	3/4"	57	14	14	30	13.5
1 1/4''×1/2''×1 1/4''	1 1/4"	1 1/4"	1/2"	56	16	16	32	11
1 1/4''×3/4''×1 1/4''	1 1/4"	1 1/4"	3/4"	61	16	16	34	13.5
1 1/4''×1''×1 1/4''	1 1/4"	1 1/4"	1"	66	16	16	34.5	14
1 1/2'' ×1/2''×1 1/2''	1.1/2"	1.1/2"	1/2"	59	16	16	34.5	11
1 1/2'' ×3/4''×1 1/2''	1.1/2"	1.1/2"	3/4"	63	16	16	37	13.5
1 1/2''×1''×1 1/2''	1.1/2"	1.1/2"	1"	66	16	16	38	14
1 1/2''×1 1/4''×1 1/2''	1.1/2"	1.1/2"	1 1/4"	74	16	16	41	15
2''×1/2''×2''	2"	2"	1/2"	66	21	21	44	11
2''×3/4''×2''	2"	2"	3/4"	69	21	21	44	13.5
2''×1''x2''	2"	2"	1"	78	21	21	44	15
2''×1 1/4''×2''	2"	2"	1 1/4"	85	21	21	46	16.5
2''×1 1/2''×2''	2"	2"	1 1/2"	92	21	21	46	17

Equal Tee M×M×M (Reduced bore), HS190-038

SIZE	G	L	L1	H	H1
3/8''	3/8''	38	8	19	8
1/2''	1/2''	42	8	21	8
3/4''	3/4''	57	9	28.5	9
1''	1''	70	11	35	11

Equal Tee M×M×M (Full bore), HS190-039

SIZE	G	L	L1	H	H1
3/8''	3/8''	42	8	21	8
1/2''	1/2''	46	8	23	8
3/4''	3/4''	57	9	28.5	9
1''	1''	70	11	35	11

Equal Tee F×M×F, HS190-040

SIZE	G	G1	L	L1	H	H1
1/2''	1/2''	1/2''	44	11	23	8
3/4''	3/4''	3/4''	53	13	28.5	9
1''	1''	1''	60	14	34	11

Equal Flanged Tee M×M×M, HS190-063

SIZE	G	L	L1	H	H1
1/2''	1/2''	59	11.5	29.5	11.5
3/4''	3/4''	68	12.5	34	12.5

Equal Tee M×F×F, HS190-064

SIZE	G	G1	L	L1	L2	H	H1
1/2''	1/2''	1/2''	47.5	11	10.5	22	11
3/4''	3/4''	3/4''	54	12.5	12	27	12.5

Equal Tee M×M×F, HS190-065

SIZE	G	G1	L	L1	L2	H	H1
1/2''	1/2''	1/2''	49	11.5	11.5	29	11.5
3/4''	3/4''	3/4''	56	12.5	12.5	32.5	12.5

Equal Tee M×M×F, HS190-072

SIZE	G	G1	L	L1	H	H1
1/2''	1/2''	1/2''	47	8	20	11

Equal Cross F×F×F×F, HS190-012

SIZE	G	L	L1	H
3/8''	3/8"	35	8.5	35
1/2''	1/2"	44	11	44
3/4''	3/4"	56	13.5	56
1''	1"	64	15	64
1 1/4''	1 1/4"	76	16	76
1 1/2''	1 1/2"	81	17	81
2''	2"	102	20	102

Five Way Tee, HS190-024

SIZE	G	G1	G2	G3	L	L1	H	H1
1''×1''×1''×92mm	1"	1"	1"	1/4"	92	32	61.5	32

Brass Threaded Union

HS190 - Brass Threaded Fittings

HS200 - Chrome-Plated Brass Threaded Fittings

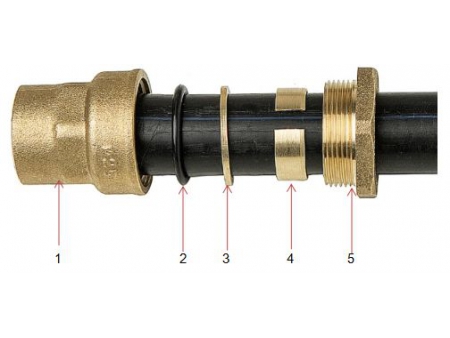

HS150 - Brass Compression Fittings

HS260 - Brass Flare Fittings

Send Message

Other Products

Thread Fittings, Brass Fittings

Threaded Joint Fittings

Threaded Drill Bits

Brass Micro Screw

Most Recent
