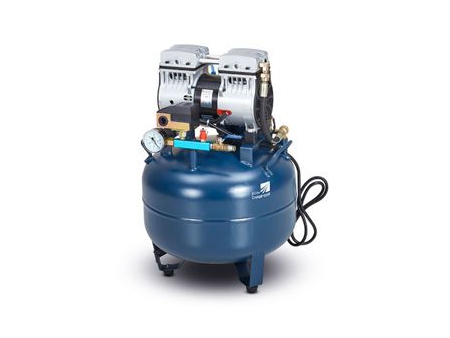

Dental Air Compressor

Request a Quote

View All: http://zc-dentalunit.com/3-1-dental-compressor/156926/index.html

Features

The dental compressor is able to generate clean, oil free compressed air in a highly efficient way, and it is meticulously crafted to better fit for integrated dental unit.
Our dental instrument has exceptionally low noise levels while running, thus providing a quiet work environment, and this is both healthy and relaxing for dentists and patients. The low noise is resulted from a special structure which could effectively reduce the noise to lower than 65dB (for ZC300-1) when generating compressed air.
Our dental compressor is fitted with a water drainage outlet. Hence, water in the compressed air is filtered and then discharged from this drainage outlet.
The internal and external sides of the cylinder are coated with an environmentally friendly layer respectively. As a result, the cylinder is easy to clean, and the compressed air is very clean.

Technical Parameters

Model	ZC300-1
Power supply	220V±10%, 50±1Hz
Power	850W
Production capacity (in 0.4Mpa)	75L/min
Max. production capacity	85L/min
On/off pressure	0.55/0.75Mpa
Operating pressure of safety valve	1.0Mpa
Starting pressure	0Mpa
Noise level	<65dB
Air container volume	32L
Ambient temperature	10~ 40°C
Ambient humidity	≤80% RH
Ambient pressure	90~106Kpa
Continuous working time	≤4h

Model	ZC300-2
Power supply	220V±10%, 50±1Hz
Power	1100W
Production capacity (in 0.4Mpa)	120L/min
Max. production capacity	140L/min
On/off pressure	0.55/0.75Mpa
Operating pressure of safety valve	1.0Mpa
Starting pressure	0Mpa
Noise level	<68dB
Air container volume	71L
Ambient temperature	10~ 40°C
Ambient humidity	≤80% RH
Ambient pressure	90~106Kpa
Continuous working time	≤4h

Model	ZC300-3
Power supply	220V±10%, 50±1Hz
Power	1650W
Production capacity (in 0.4Mpa)	180L/min
Max. production capacity	210L/min
On/off pressure	0.55/0.75Mpa
Operating pressure of safety valve	1.0Mpa
Starting pressure	0Mpa
Noise level	<70dB
Air container volume	87L
Ambient temperature	10~ 40°C
Ambient humidity	≤80% RH
Ambient pressure	90~106Kpa
Continuous working time	≤4h
