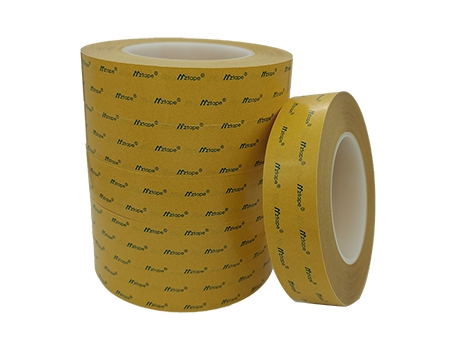

Conductive Double-sided Tape, MZ-D9710

Conductive Double-sided Tape, MZ-D9710
Conductive Double-sided Tape, MZ-D9710
Conductive Double-sided Tape, MZ-D9710
Conductive Double-sided Tape, MZ-D9710
Request a Quote

High temperature resistant tape with conductive adhesive

MZ-D9710 conductive double-sided tape applies nonwoven fabric as substrate, offers good heat-resistance and conductivity, when applied on FPC, its conductivity and adhesion could be maintained after high-temperature reflow soldering. Suitable for FPC binding during reflow soldering, metal frame conducting and EMI shielding, electronic internal part binding, etc.

1240mm*50mm/PCS, packaging dimensions L1340mm*W170mm*T170mm.

Product Structure

80g printed silicone paper
35u conductive acrylic adhesive
30u conductive non-woven fabric
35u conductive acrylic adhesive

Applications
Technical Parameter
Property Unit Value Testing method
Substrate thickness mm 0.03 GB/T 7125-1999
Total thickness mm 0.1 GB/T 7125-1999
Initial adhesion (inner) Steel ball size# 3-7 GB/T 4852-2002
Initial adhesion (outer) Steel ball size# 3-7 GB/T 4852-2002
180° peel strength (inner) N/25mm 18-25 GB/T 2792-1998
180° peel strength (outer) N/25mm 18-25 GB/T 2792-1998
Adhesion durability H ≥48 GB/T 4851-1998
Heat resistance ℃∕30min -10~260 --
Electrical resistance Ω 0.05 GB/T 4067-1999
Color —— Grey Visual
