Automatic Horizontal Wire Coil Packaging Line
SA-WS-400
Fully automatic coil handling and packaging system for tipping, strapping, wrapping, weighing and labeling of wire rod coils and slit coils
- Packaging speed 1.5min/pc
- Inner diameter of coil 460mm (±20mm)
- Outer diameter of coil 700mm (±20mm)
- Coil length 350mm

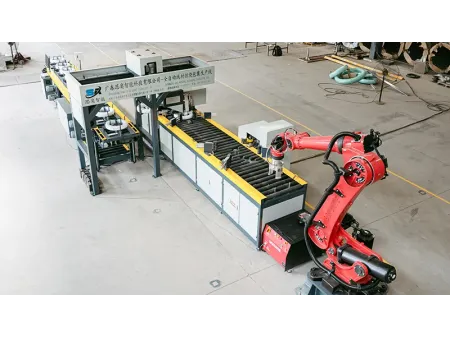

The horizontal wire coil packaging line is a fully automated solution designed for comprehensive handling and packaging of wire rod coils and slit coils. Engineered to minimize labor dependence, the coil packaging system requires only one operator for loading, with all other processes executed automatically.

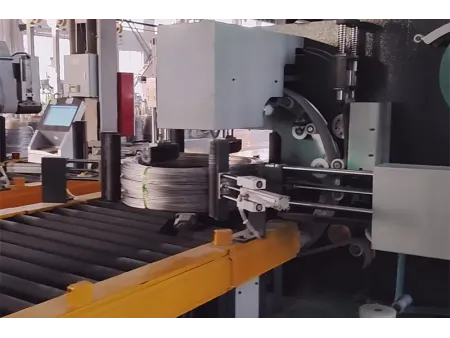

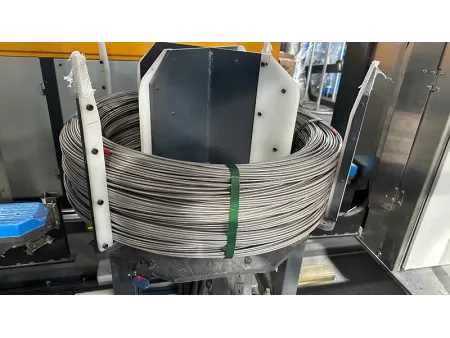

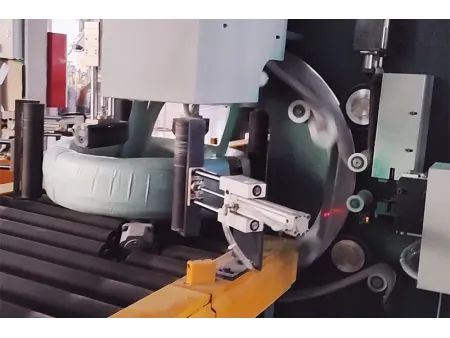

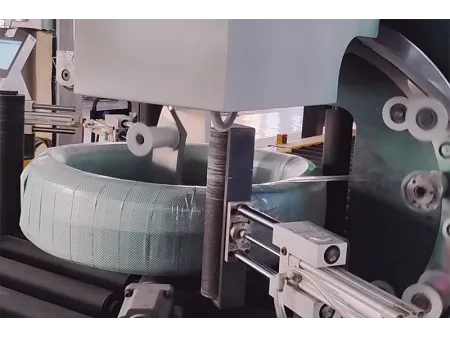

Once coils are loaded, it performs coil tipping (rotation for proper alignment), automatic strapping, coil wrapping, weighing, label printing and application, and automated storage all in one continuous workflow. Label data is seamlessly uploaded to the customer’s ERP or MES system, enabling real-time data integration and production traceability. By eliminating the need for manual strapping and reducing overall operator involvement, the coil handling and packaging system significantly lowers labor costs while maintaining high efficiency and consistent packaging quality.

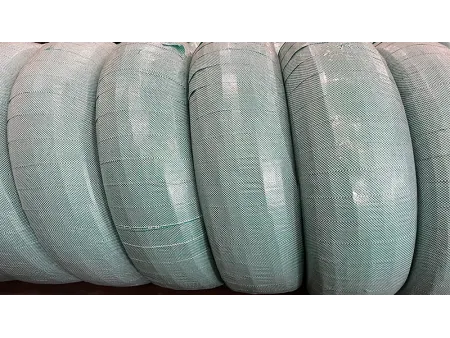

Before packagingAfter packaging- Dimensions (L×W×H): 10×13.5×3.4m
- Inner diameter of coil: 460mm ±20mm
(machine can be designed based on the required size of customer's products) - Outer diameter of coil: 700mm ±20mm
(machine can be designed based on the required size of customer's products) - Coil length: 350mm
- Weight: 15-200kg
- Packaging speed: 1.5min/pc
- Voltage: AC 220/380V, 50/60Hz
- Total power: ≤15kW
- Air pressure: ≥0.6MPa
