Air Entrainment Meter
Request a Quote

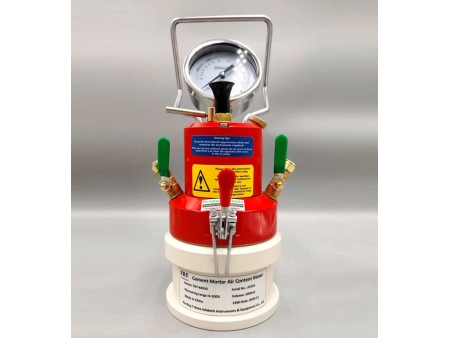

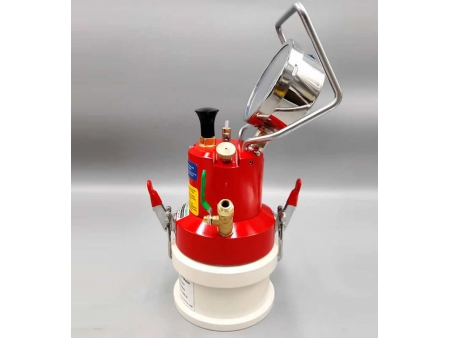

TBTCEM-2030 Air Entrainment Meter
Technical Parameters
| Volume | 1L |
| Air entrainment range | 0-100% |
| Accuracy | 0.1% up to 5% air, 0.15% from 5% to 21% air, and 0.2% from 21% to 100% air |
| Pressure gauge | Dustproof, waterproof, explosion-proof |
| Main unit material | Magnesium aluminum silicon alloy |
| Buckle | Push type |
| Weight | 6kg |
TBTCA-1L Cement Mortar Air Content Meter (Digital Display)
TBTCA-1L cement mortar air content meter with digital display is used to determine the total air content of cement paste, mortar, and masonry cement.
Features
1. Direct digital readout for high precision measurement
2. Built-in pump, manual slide valve operation, and dual-scale pressure gauge
Technical Parameters
| Volume | 1L |
| Air content range | 0-10% |
| Accuracy | 0-10% accuracy is 0.005% (actual error 0.01%) |
| Pressure gauge range | 0.1MPa (overpressure operation prohibited) |
| Pressure gauge accuracy | ±0.0005MPa |
| Pressure gauge material | High-density aluminum alloy |
| Pressure gauge features | Dust-proof, explosion-proof |
| Latch type | Push type |
| Weight | Approx. 6kg |
TBTCEM-546 Air Entrainment Meter
Technical Parameters
| Volume | 1L |
| Air entrainment range | 0-20% |
| Main unit material | Magnesium aluminum silicon alloy |
| Pressure gauge | Dustproof, waterproof, explosion-proof |
| Accuracy | 0.1% up to 6% air and 0.2% from 6% to 20% air |
| Weight | About 3.5kg |
