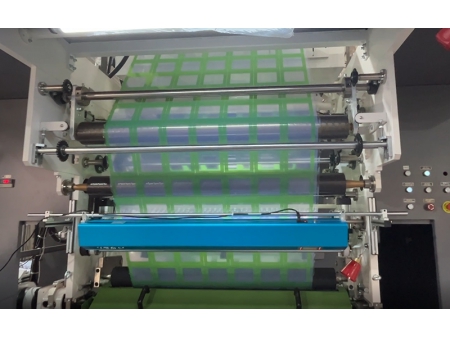

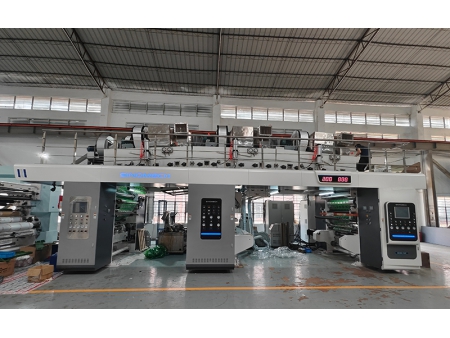

Duplex Combi Laminator
Request a Quote
Compatible with Solventless, Solvent-Based, Water-Based, and Cold-Seal Coating Processes
The duplex combi laminator is designed for flexible packaging converters and film processors that require both solventless lamination and dry lamination capabilities. It supports two main process modes: gravure dry duplex lamination and solventless duplex lamination.
The solventless coating unit and the gravure coating unit are independent fixed units. The fixed coating head structure supports high-precision operation and reduces the need for readjustment during product changeover, helping converters maintain consistent production quality across different needs.
- Max lamination speed: 400m/min
- Max web width: 1050/1300/1500mm
- Max unwinding diameter: Ø800/1000mm
- Max rewinding diameter: Ø800/1000mm
- Core ID: 3inch/6inch (3" or 6")
- Coating mechanism for solventless lamination: Five-roll coating
- Coating mechanism for dry lamination: Gravure coating
- Max production speed:
400m/min for solventless lamination
300m/min for dry lamination
- Drying system: 3 sections
- Heating source: Electric
- Machine dimensions (without mixer) (L×W×H): 10050 × 4500 × 4500 mm
Application Materials
This combi laminator is suitable for various films, such as:
- Metallized films
- Aluminum foil
- Paper
- Other flexible packaging materials
Applicable Processes
- Solventless lamination
- Solvent-based lamination
- Water-based lamination
- Optional cold-seal adhesive coating
