Outdoor Solar Controller/Inverter
Request a Quote
Integration of solar inverter and solar charge controller

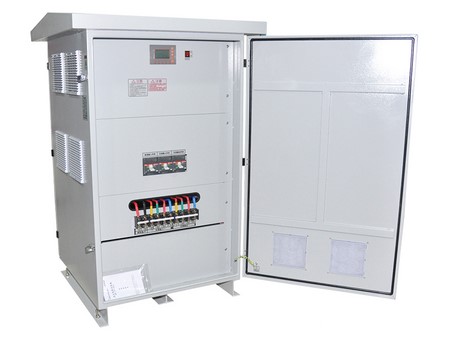

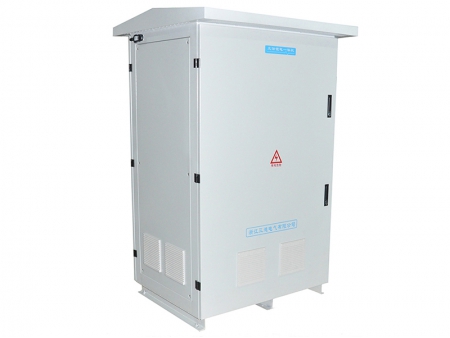

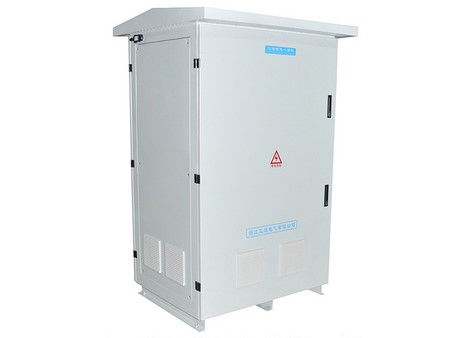

Outdoor solar controller/inverter has an IP54 protection rating, providing significant waterproof and dustproof effects. The inverter adopts SVPWM (Space Vector Pulse Width Modulation) control technology to convert the DC power from the battery into AC power.
Applications
Outdoor solar controller/inverter can be widely used in various large-scale solar power generation applications such as homes, public lighting, mining, border defense, islands, pastoral areas, commercial, and industrial sectors.
Features
- Outdoor solar controller/inverter utilizes Mitsubishi's 6th generation IPM intelligent module.
- Solar controller/inverter comes with the American TI central processor DSP28335 chip.
- Dual-mode startup selection function allows for step-down and frequency conversion startup settings through the LCD screen.
- The isolated transformer design provides complete electrical isolation between input and output, with molded case circuit breakers for both.
- Built-in grid frequency isolation transformer is capable of handling equipment with strong impacts such as motors, pumps, and air conditioners. Simultaneously, DC busbars and AC busbars are completely isolated to avoid interference between AC and DC.
- LCD LED display shows various data and fault codes, facilitating quick fault diagnosis and repair guidance for users.
- Comprehensive output protection function.
- Advanced PID algorithm allows for more precise battery energy management system.
- Three-stage charging method maximizes the utilization of photovoltaic modules and battery capacity.
- This outdoor solar controller/inverter is certified by European CE (EMC and LVD) and ISO9001.
Specifications
| Model | SPIC-5kW ~ 500kW |
| Isolation mode | Low frequency transformer |
| Battery Input | |
| Rated voltage (VDC) | 48/96/192/240/360/384/480/600V |
| Solar Controller Input | |
| Battery pack voltage | 48/96/192/240/360/384/480/600V (optional) |
| Max. input voltage of PV array | ＜850V |
| Input string | 1 string |
| Max. charge current | 50A,80A,100A,150A,200A, 300A (optional) |
| Charging method (VDC) | Fast charge, equalization charge, float charge |
| AC Output | |
| Rated power | 5kW-500kW |
| Rated voltage | 110/120/220/230/240/380/400/415/440/480VAC (optional) |
| Output frequency | 50/60Hz±0.05 |
| Output phase | Single phase or three phase |
| Output waveform | Pure sine wave |
| Waveform distortion rate (THD) | ≤3% (linear load) |
| Dynamic response (0 to 100% load) | 5%, ≤50ms |
| Power factor | 0.99 |
| Efficiency | ＞93% |
| Overload ability | 150%, 10sec |
| Insulation strength (input and output) | 1500VAC, 1min |
| Protection | |
| Protection functions | Input reverse polarity, under voltage, overvoltage, output overcurrent, short circuit, overheating |
| Display screen | LCD LED |
| Operation mode | Continuous operation |
| Cooling method | Intelligent fan-cooled |
| Short circuit / overload protection | No automatic recovery, need to restart the inverter |
| Working Environment | |
| Degree of protection | IP54 (outdoor) |
| Altitude | ≤3000 (derating for above 1000m) |
| Working temperature | -20～ 50℃ |
| Relative humidity | 0~95% non-condensing |
| Noise (1 meter) | ≤60dB |
| Dimensions (W×D×H) | 700×600×1110mm |
| Net weight | 210kg |
