Electric Light Duty Truck
Request a Quote
K15

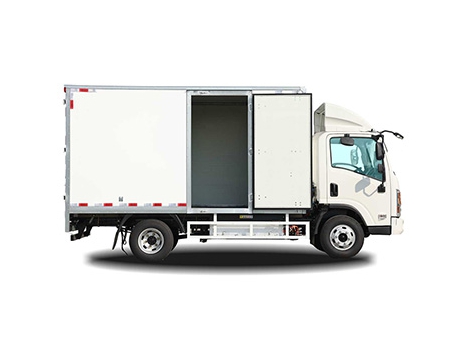

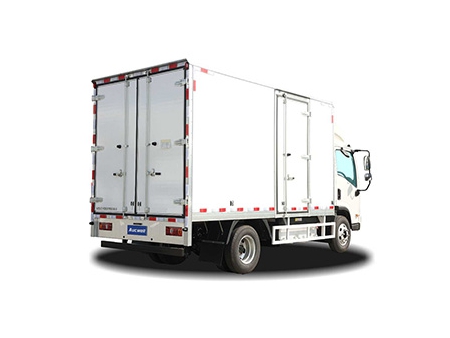

This is a medium-sized electric truck that comes with multiple features that provide you better and more comfortable driving experience.
Made of roll formed high-quality steel plates, the rugged cargo box remains its beautiful appearance under heavy task. With the anti-slip flooring, the electric vehicle can support large quantities of goods without any flooring deformation.
This electric truck is also equipped with Aucwell’s self-developed main battery pack, motor, electric control, and vehicle controller. The installed battery heating system allows for normal running even on cold winter days.
Features
- A dual-function integrated high-voltage distribution cabinet that saves space and improves the motor efficiency to 97%, resulting in a more robust and comfortable driving experience.
- A superior volume of 19m³and a payload capacity up to 1,790kg. The interior width of the cargo box conforms to national and European logistics standards.
- Impressive and practical interior design. Optional corrugated board for the cargo box, which provides extra protection and aesthetics at the same time.
- Economical, environment-friendly, power-saving, and reliable.
Technical Parameters (Electric Box Truck)
| Overall Size | 5,995*2,160*3,100 mm |
| Container Size | 4,100*2,100*2,100 mm |
| Wheel Base | 3,370 mm |
| Curb Weight / Total Mass | 2,980/4,495 kg |
| Loading Capacity | 2,000 kg |
| Approach Angle / Departure Angle | 22°/14 ° |
| Front Suspension / Rear Suspension | 1,160 / 1,465 mm |
| Front / Rear Tracks | 1,650 / 1,535 mm |
| Max. Speed | 90 km/h |
| Climbing Capacity | 20% |
| Battery Capacity | Lithium Battery 86.55 kW/h |
| Charger Type | Fast Charger: 2 Hours, Slow Charger: 10 Hours |
| Drive Mode | Middle-engine, Rear Drive |
| Front Suspension Type | Torsion bar spring independent suspension |
| Rear Suspension Type | Torsion bar spring independent suspension |
| Tire Size | 7.00R16LT 8PR, 4 PCS Tires |
| Service Brake | Double circuit hydraulic pressure brake. |
| Parking Brake | Central ratchet zipper type, Central parking brake |
| Vehicle frame structure | Load-supporting type |
| Passengers | 2-3 Seats |
| Driving Range | 365 km |
| Car Body System | |
| Seat Material | Fabric seat with high foam sponge |
| Instrument Panel | Combined Instrument (front/back signal, light, trumpet, dump energy, current speed display) |
| Lighting System | Combined type front light and back light, braking light, front/back turning light |
| Safety Device | ABS System, Driver's seat belt reminder, Safety belts |
| Interior Device | Electric window, Sunshield, Remote control key, Central lock |
| Manipulation of the configuration | Back up camera, Anti-slip slope function, Radio, USB Port. |
| A/C | PTC Heater, Air Conditioner |
(In addition to electric box trucks, we also offer electric dropside trucks and electric refrigerated trucks)
