K10

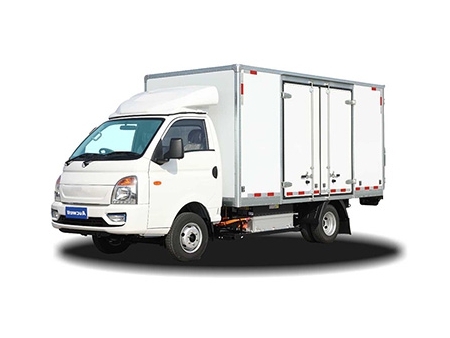

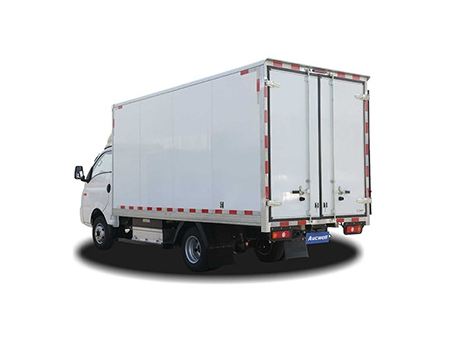

A light duty truck, this electric vehicle is well-equipped with a variety of functions, available in the enclosed box, dropside, and refrigerated versions.
With a dimension of 5,700*1,750*2,680mm and a high-strength frame, this electric light truck boasts a superior loading capacity. It is powered by our self-developed main battery pack, motor, electric control, and vehicle controller. Plus, our advanced battery heating system ensures reliable performance even in the coldest of weather conditions.
Features
- A dual-function integrated high-voltage distribution cabinet that saves space and improves the motor efficiency to 97%, resulting in a more robust and comfortable driving experience.
- Larger loading capacity: up to 11m³volume 1,790kg payload capacity.
- Impressive and practical interior design. Optional corrugated board for the cargo box, which provides extra protection and aesthetics at the same time.
Vehicle Tour of K10 Electric Light Duty Truck
Road Driving Test of K10 Electric Light Duty Truck
Technical Parameters
| Main Parameters | Electric Truck Type | | |
| Vehicle Dimensions (mm) | 5,620*1,760*2,090 | 5,700*1,750*2,680 | |
| Truck Bed / Cargo Box Size (mm) | 3,510*1,660*370 | 3,640*1,690*1,800 | |
| Wheel Base (mm) | 3,100 | ||
| Curb Weight/Total Mass (kg) | 2,150 / 4,200 | 2340/4200 | |
| Payload Capacity (kg) | 2,050kg | 1,860kg | |
| Approach/Departure Angle (°) | 20 / 16 | 20 / 15 | |
| Front/Rear Suspension (mm) | 1,190/1,330 | 1,190 / 1,410 | |
| Front/Rear Tracks (mm) | 1,365 / 1,235 | ||
| Dynamic Performance | Max. Speed (km/h) | 90 | |
| Climbing Capacity (%) | 20 | ||
| Battery Capacity (kWh) | 61.82kWh (Yiwei) | ||
| Driving Range (km) | 268 | ||
| Motor Type | Permanent magnet synchronous motor | ||
| Peak Power and Torque (kW/Nm) | 112/255 | ||
| Chassis Steering systems | Drive Mode | Middle-engine Rear-drive | |
| Front Suspension | Horizontal plate spring type independent suspension | ||
| Rear Suspension | Horizontal plate spring type independent suspension | ||
| Steering Type | EPS Electronic Power Steering | ||
| Wheels Brake System | Tire Size | 185R15LT 8PR | |
| Wheel Material / Tire | Steel Wheels / 6 | ||
| Front and Rear Brake System | Front Disc Rear Drum | ||
| Brake Type | Double circuit hydraulic brake | ||
| Parking Brake | Ratcheting Zip Type | ||
| Body Structure | Body Structure | Non Load-supporting | |
| NO. of Doors | 2 | ||
| NO. of Seats | 2 | ||
| Charging Configuration | GB Fast Charger | ● | |
| 6.6kW AC Slow Charger | ● | ||
Basic Configurations
| Model | Cargo Box Truck | Dropside Truck | ||
| Truck Body | Color Steel Composite Plate | ● | ||
| Corrugated Sheet | ● | |||
| Single Side Door Open | ● | |||
| Safety Device | Braking Energy Recovery | ● | ||
| Pedestrian Reminder | ● | |||
| Driver's Seat Belt Reminder | ● | |||
| ABS EBD | ● | |||
| Three-Point Safety Belts | ● | |||
| Controllability | Reverse Radar | ● | ||
| Wheel-Slip Control | ● | |||
| Upper Front Bracket | ○ | ● | ||
| Front Fog Lamps | ● | |||
| Headlamp Height Adjustable | ● | |||
| Central Lock | ● | |||
| Remote Control Key | ● | |||
| Internal Configuration | Front Door Electric Window | ● | ||
| Inner Rear-view Mirror | ● | |||
| Driver And Co-Pilot Sunshield | ● | |||
| Cockpit Floor Material | Common floor leather | |||
| Seats Material | Fabric | |||
| Driver Seats Adjusted | Manual | |||
| Co-Pilot Seats Adjusted | Manual | |||
| Driver Seats Adjusting Way | Front and back adjustment,Back Angle adjustment | |||
| Co-Pilot Seats Adjusting Way | Back Angle adjustment | |||
| Multimedia | Radio USB | ● | ||
| NO. Of Speaker | 4 | |||
| A/C | Front Cooling | ● | ||
| Front PTC Heater | ● | |||
| Safety Equipment | Jack,Extinguisher,Stop Wedge,Warning triangle | |||
