Request a Quote

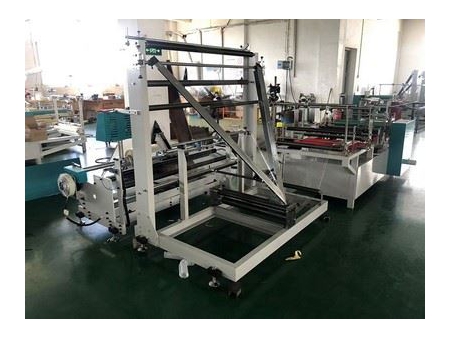

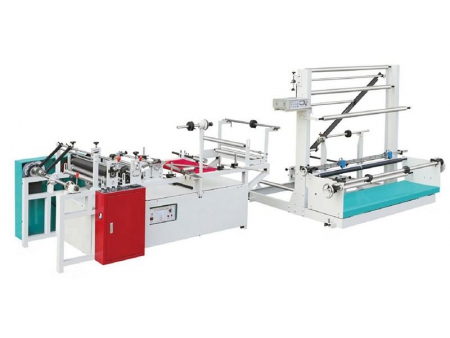

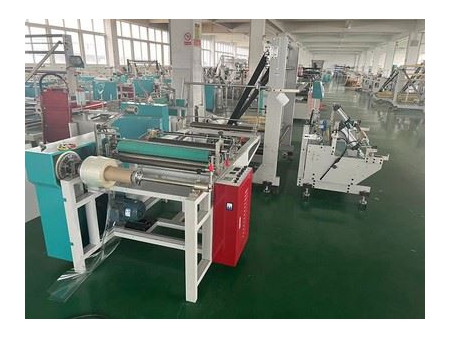

This Film folder rewinder is suitable for OPP, PP, PE, CPP and other printing or non-printing plastic film folding and rewinding.

Features
  • The unwinding and rewinding motors operate synchronously, ensure the output stable and smoothly.
  • Unwind adopts magnetic powder brake control.
  • Rewind adopts magnetic powder clutch control.
  • Rewinder adopts two photocells for web-guiding.
  • With the functions of Bottom gusset and double adhesive tape applying.
  • The main machine speed adopts inverter regulator.
Optional
  • Pearlized Film Inserting & Ultrasonic Knurling Device
  • Meter Counter
  • Air Shaft
  • Waste Film Trimming Device
Specification
Model
SZS-600
SZS-700
SZS-800
SZS-1000
Max.Unwind Width 1200mm 1400mm 1600mm 2000mm
Max.Rewind width 600mm 700mm 800mm 1000mm
Max.Web Diameter 500mm 500mm 500mm 500mm
Rewind Speed 80m/min 80m/min 80m/min 80m/min
Heater Power 200W 200W 200W 200W
Ultrasonic Power AC1000VA AC1000VA AC1000VA AC1000VA
Power Supply AC220V AC220V AC220V AC220V
Total Power 2.5KW 2.7 KW 3KW 3KW
Overall Dimension(Film Folder) 1490×1520×1370mm 1590×1720×1630mm 1700×1920×1780mm 1890×2200×2100mm
Overall Dimension(Single Folder Rewinder) 1880×820×1200mm 1880×920×1200mm 1880×1020×1200mm 1880×1220×1200mm
Overall Dimension(Double Folder Rewinder) 2320×820×1200mm 2320×920×1200mm 2320×1020×1200mm 2320×1220×1200mm
