360° Machine moving skates can carry up to 25 tons and handle a traction force of up to 50 tons, making it ideal for transporting large and heavy machinery. It is 360° rotation capability and compact size enhances its usability, particularly in confined spaces where traditional transport methods might struggle. It is equipped with a long lasting battery that ensures extended operational periods. This means less downtime and more productivity. It aids in the transport of materials and equipment, while in warehousing, it simplifies the process of moving large items from one location to another.

Application

Machine moving skates assist in the transportation of materials and equipment. In warehouse environments, they simplify the process of relocating heavy items from one place to another.

Features

Compact design
Smooth, fast loading, excellent performance
Safe, reliable, maintenance free design

Specification

Specification	Dimension	Weight	Drive power	Battery capacity	Battery specifications and types	Tractive effort	PU wheel specification	Gearbox
10T-PT	635614.7	94kg	400W	30AH	48V-LFP	10T	130*100	90L100
20T-PT	646417	127kg	750W	60AH	48V-LFP	20T	145*110	104L100
25T-PT	78.57017	147kg	1000W	60AH	48V-LFP	25T	145*110	104L100
25T-SJ	78.57017	165kg	1200W	60AH	60V-LFP	30T	145*110	104L100
30T-PT	847418.7	193kg	1000W	60AH	48V-LFP	30T	166*120	120L100
30T-SJ	847418.7	212kg	1250W	60AH	60V-LFP	35T	165*120	120L100
35T-PT	888019	217kg	1500W	60AH	48V-LFP	35T	165*120	120L100
40T-SJ	888019	226kg	1600W	110AH	60V-LFP	40T	165*120	120L100
45T-HH	888019	235kg	1800W	110AH	72V-LFP	45T	165*120	120L100
50T-PT	909219.3	259kg	2000W	110AH	48V-LFP	50T	166*150	120L100
55T-SJ	909219.3	266kg	2300W	110AH	60V-LFP	55T	166*150	120L100
60T-HH	909219.3	278kg	2700W	110AH	72V-LFP	60T	166*150	120L100

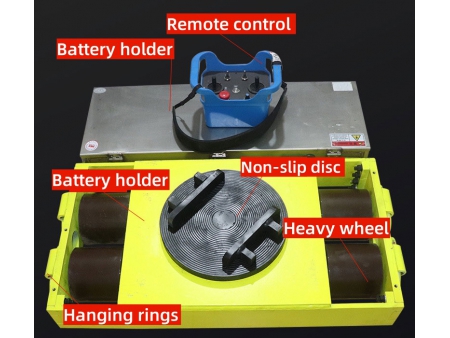

Structure
