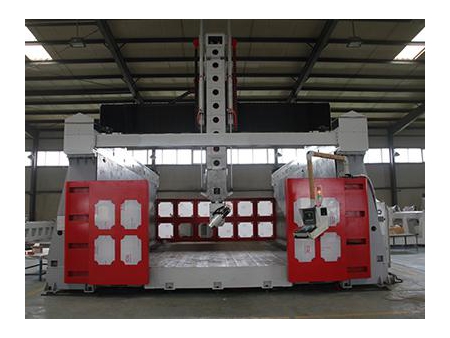

Gantry Moving 4 Axis CNC Router, SF2040Q-4S Series
Request a Quote

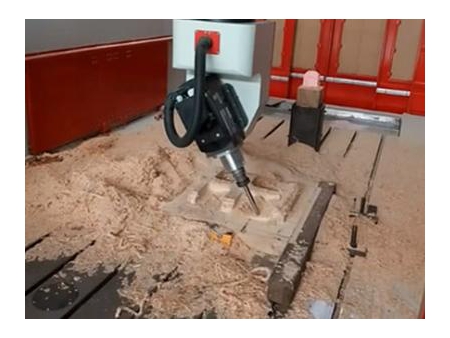

The gantry moving 4 axis CNC router is multifunctional equipment that is designed to carry out various processes, including 3D carving, punching, cutting, and much more. The 4-axis linkage CNC router can even handle workpieces with curved and irregular surfaces, such as large-scale 3D foam molds, LFC molds, 3D molds, and large sculptures.
Materials Cut
Foam, carbon fiber, plastic, resin, composite material, non-metallic material.
Applications
- Woodworking industry: door, furniture, loudspeaker boxes, musical instruments, etc.
- Composite materials industry: plastic parts, FRP parts, rubber products, composite material parts, etc.

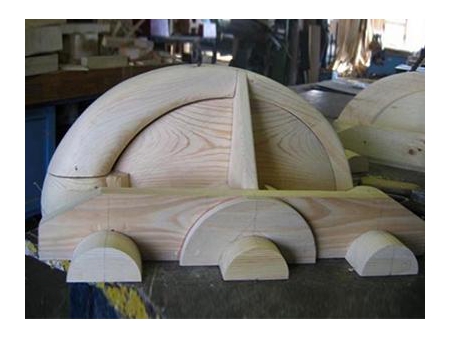

- Foundry industry: casting molds, wood molds, epoxy molds, foam molds, LFC molds, composite material molds, injection mold processing, etc.
- Automobile industry: automotive molds, car interior parts, auto parts molds, etc.

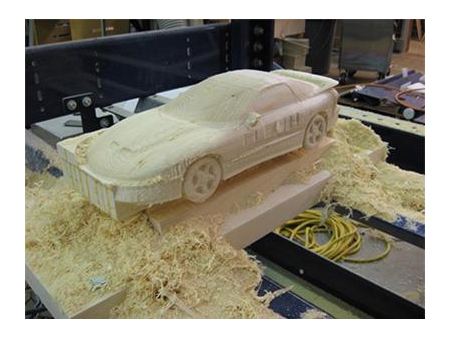

- Model industry: various 3D models, landscape models, exhibition models, architecture models, etc.

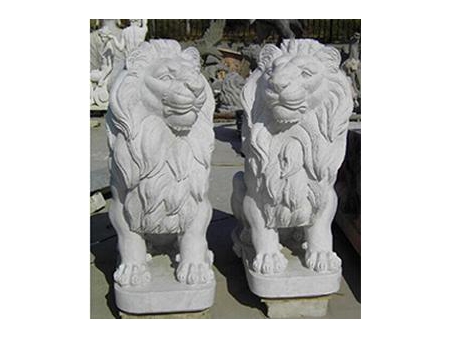

- Sculpture: human form sculptures, animal and plant sculptures, decorative sculptures, etc.
- Film industry: movie props, activity props, etc.

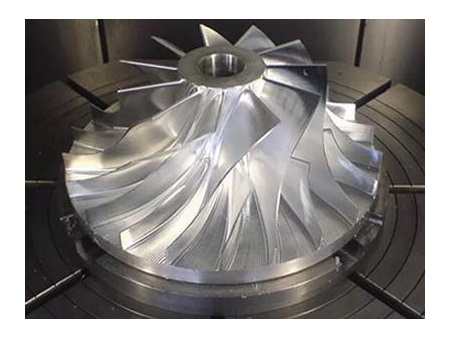

- Ship industry: ship propellers, steamboat accessories, etc.
Features

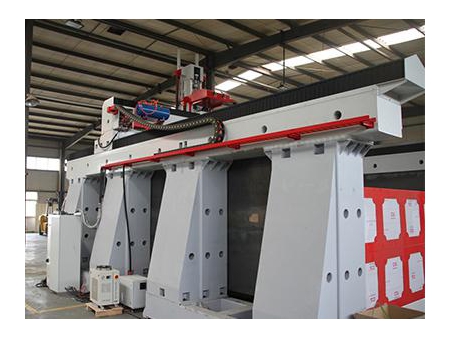

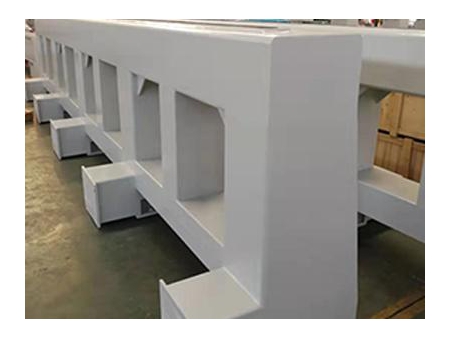

- The gantry moving 4 axis CNC router features a moveable beam with a fixed column structure. This provides high-precision performance and stability.

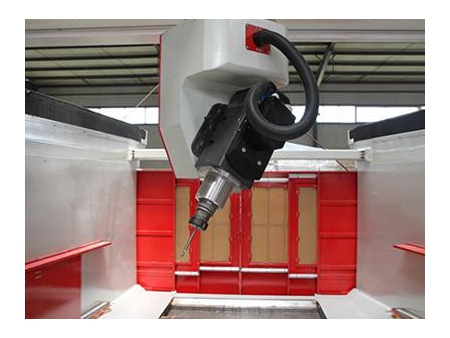

- Industrial spindle with a maximum rotating speed of 24000 RPM that can rotate from -90°to 90° to carve, drill, and cut various workpieces with irregular and curved surfaces.
- Its X and Y axis uses a rack and pinion drive, while the Z axis uses a screw drive.
- It can process workpieces from all directions. The diameter of the workpiece can reach up to 800mm.
- This 4 axis CNC router is equipped with a steel table or aluminum table depending on your operating requirements.

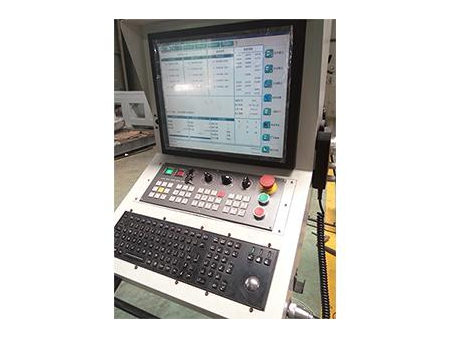

- Syntec control system.
Parameters
| Series | F1-SF2040Q-4S |
| Stroke | 2000*4000*1000mm |
| Idle speed | ≥60000mm/min |
| Processing speed | ≥30000mm/min |
| Spindle power | 9KW |
| Spindle speed | 24000r/min |
| File format | G-code |
| Working voltage | 380/220V 3PH (Customizable) |
| Dimensions | 5 x 6 x 3 m |
| Weights | 4000 KGS |
Options
- Rotary axis
- Vacuum cleaner

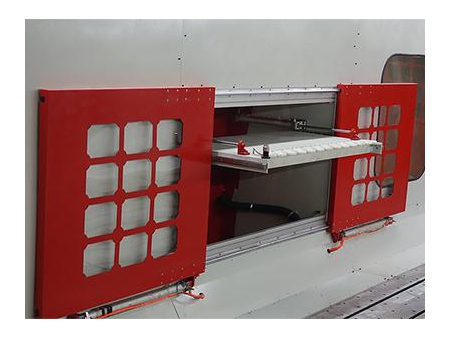

- Protective door
