ZHP-135 Post-tension Pipe Forming Machine

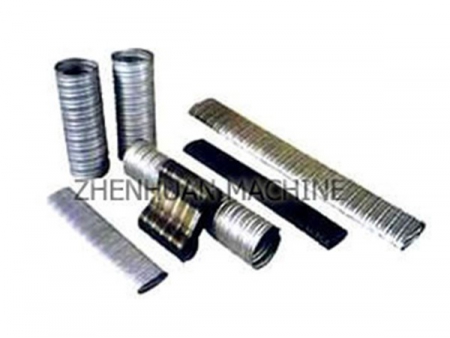

Being suitable for both indoor and site work, this post-tension pipe forming machine is perfect for producing round & oval corrugated pipes, which are widely used in expressway, bridge, train and large-span post-tension concrete project.
Take your working efficiency and profits further with Zhenhuan roll forming machine, spiral duct forming machine, plasma cutting machine, welding machine etc.
Technical Data
- Post-tension pipe diameter35-135mm
- Raw materialGalvanized steel, 0.2-0.4mm in thickness
- Raw material width35.4-36mm
- Pitch of spiral23mm

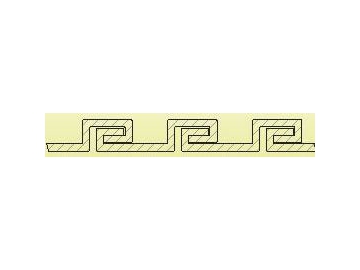

- Seam lock typeDouble seam lock
- Strip feeding speed0-35m/min
- Motor power for round duct forming machine4kW
- Motor power for oval duct forming machine3kW
- Total weightAbout 600kg
- Dimension of round duct forming machine1300×1800×1300mm
- Dimension of oval duct forming machine800×450×800mm
