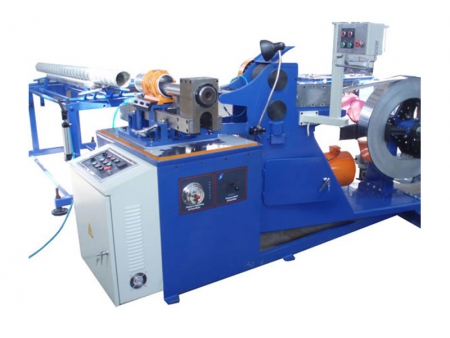

ZHTF-I Spiral Duct Forming Machine
This spiral duct forming machine, also called as spiral tubeformer or spiral ductformer, has similar technology to Tormec Switzerland.
Features
- Special mould for various diameters, very easy to change and adjust, crane or too much manpower are not needed
- Large diameter range
- High speed synchro flying cutting system
- PLC touch screen control, convenient operation
- Light and small, suitable for site work
- Perfect swage, without leakage
Technical Data
- Spiral duct diameter80~1500mm
- Max. spiral duct length8000mm
- Applicable materialGalvanized steel
- Thickness of steel strip0.4~1.0mm
- Width of steel strip137mm
- Feeding speed1~35m/min, adjustable
- Main drive motor power5.5kW
- Cutting motor power4kW
- Compressed air0.8MPa
- Control systemPLC HMI
- Machine dimension3500 x 2800 x 2580mm
- Machine weightAbout 2500kg
ZHTF-II Spiral Duct Forming Machine
Features
- Special aluminum alloy mould, light & durable
- Round roller shear, without noise and burrs
- Large diameter range
- PLC control, convenient operation
- Auto unloading rack, low labor cost
Technical Data
- Diameter of spiral duct100~1600mm
- Max. spiral duct length8000mm
- Applicable materialGalvanized steel, stainless steel
- Material thickness0.4~1.2mm, galvanized steel
0.4~0.8mm, stainless steel - Width of material137mm
- Feeding speed1~35m/min, adjustable
- Main drive motor power11kW
- Hydraulic station motor power4kW
- Cooling pump motor power125W
- Control systemPLC HMI
- Machine size3100 x 1700 x 1900mm
- Machine weightAbout 2500kg
