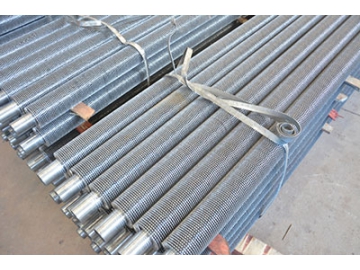

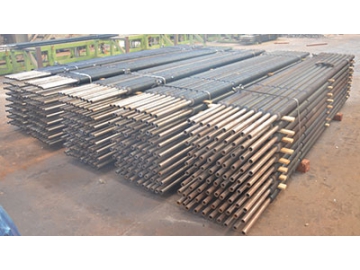

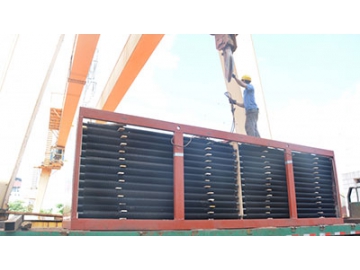

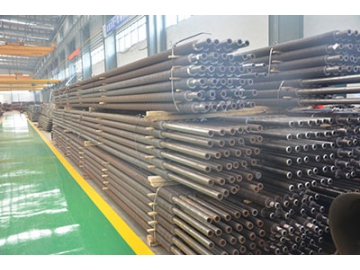

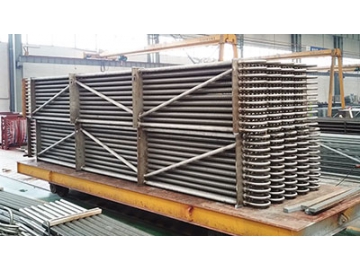

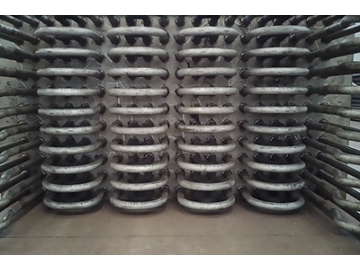

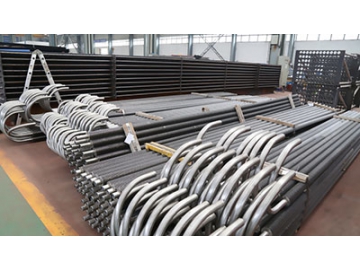

Boiler Fin Tube
Hua Dong Boiler is dedicated to the production of boiler fine tubes, which are part of an economizer. Our fin tube is an ideal method for increasing the heating surface of boilers, and improving boiler heat transfer efficiency.
We provide custom boiler fin tubes for industrial boiler manufacturers and boiler accessories suppliers. Corresponding processing services like welding and assembling are also available.
Specifications
Fins Material
Copper, aluminum, carbon steel, stainless steel
Tube materials
Carbon steel pipe A179, A192, A210; stainless steel pipe A269, A213 T5 T11 T22 304 316, or customized
25.4 mm / 31.8 mm/ 38.1 mm/ 50.8 mm / 63.5 mm/ 76.0 mm
Finned Tube Thickness
With solid fin: minimum 2.13mm
With serrated fin: minimum 1.9mm
Fin Height Range:
Solid fin: 6.3mm-31.8mm
Serrated fin: 12.7mm-38.1mm
Extruded Finned Tube
Welded finned tube (high frequency welded finned tube)
Square finned tube
Spiral Finned Tube
Longitudinal Finned Tube
Helical Serrated Finned Tubes
