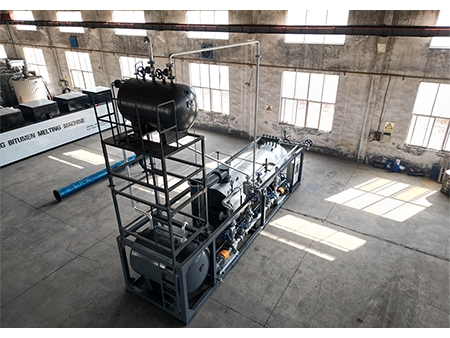

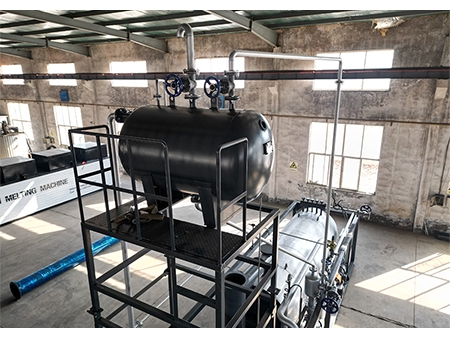

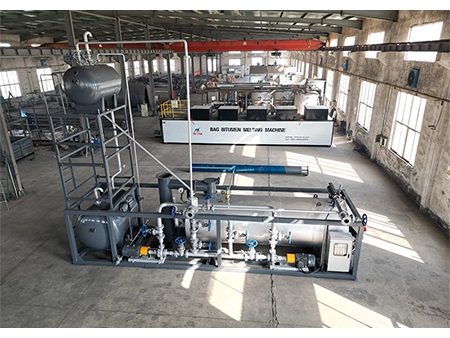

This thermal oil boiler is designed and produced for various industrial heating applications through the adoption of diesel oil burner that generate heats. By using thermal oil as the heat transfer medium, the thermal oil pump enables forced circulation of the medium, that is, the heat energy is transferred to the heating equipment and then the thermal oil returns to the boiler for reheating.

The thermal oil boiler provides heat transfer fluid up to 300℃, and 70% to 85% of the fuel becomes heat energy therefore offering high thermal efficiency. PLC system controls the operation of the thermal oil boiler and monitors all the functions the equipment to ensure a safe and smooth running.

Applications

Configured with diesel oil burner, our thermal oil boiler is extensively used in various industries requiring heating systems such as asphalt melting, textile dyeing, food, petroleum, chemical, pharmaceutical, and building materials.

Technical parameters
Thermal capacity 1,600,000 Kcal
Diesel oil burner RIELLO Model RL250
Diesel oil consumption 120 kg/h (continuous operation)
Dimensions (L×W×H) 5.43×2.3×2.65m
Installation area (L×W) 10×3m
Total power 42kW
Power supply AC 380V 50HZ
Max. temperature of thermal oil 300℃
Thermal oil inlet diameter DN150mm
Thermal oil outlet diameter DN150mm
Thermal oil capacity 3.5t
Thermal oil pump flow rate 160m³/h
Temperature control Automatic
Environment protection Compliance with environmental regulations
Features
  • High Heat Transfer Efficiency
    High temperature heat transfer fluid is adopted in the thermal oil boiler for higher thermal efficiency. It can quickly transfer heat energy to the object in an efficient manner.
  • Precise Temperature Control
    The precise control of oil temperature and flow rate is highly guaranteed to achieve the required heating result.
  • Safe and Reliable Operation
    The thermal oil boiler operates in a closed loop, which eliminates the oxidation reaction and leaves no deposits on the heating surfaces. In addition, the utilization of fully synthetic oil effectively prevents the oil leakage and fire risks.
  • Compact Structure and Less Footprint
    The compact design of the thermal oil boiler enables it especially suitable for narrow spaces or temporary applications.
  • Long Service Life
    Constructed with high quality materials and state-of-the-art production processes, this thermal oil boiler offers high stability and reliability, with a lifespan lasting for decades.
