Oxygen Sensor

Oxygen Sensor
Oxygen Sensor
Request a Quote

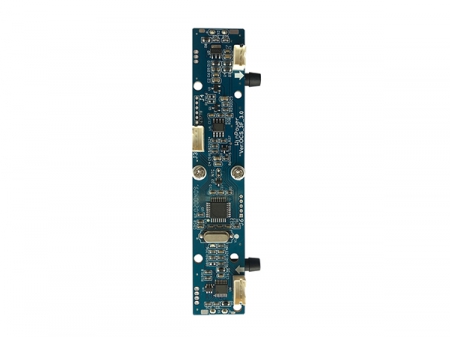

Oxygen sensor is aimed for oxygen concentration and flow rate monitor.
It adopts ultrasonic technology with high accuracy, strong anti-interference ability, rapid respond, and long service life.

Technical Parameters
Model JAY-110A
Flow Resolution 0.1L/min
Weight 25g
Max Pressure 150Kpa
Size (mm) 120.5(L)*22(W)*22(H)
LED Indicator Red: oxygen purity<82% Blue: oxygen purity≥82% Yellow: flow rate<0.5L/min
Purity Detection Accuracy ±2%L/min or reading 5% (Max)@ (5-55)℃
Output UART port support purity and flow signal output

Output
(1) Indicator#1: Red with LED display for oxygen concentration below 82% (Available for customization)
(2) Indicator#2: Blue with LED display for oxygen concentration of or above 82% (Available for customization)
(3) USRT port supporting oxygen concentration signal output
