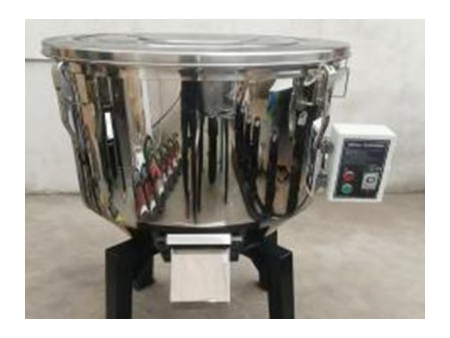

Vertical Batch Mixer
Request a Quote
The Vertical Batch Mixer is used as a raw material pre-treatment machine that mixes plastic pellets, masterbatch, and regrind quickly. It is widely used in plastic processing industries such as blown film, injection molding, and extrusion.
Designed to mix different colors and types of plastic pellets, such as PE pellets with masterbatch, evenly before production, the final film or molded products are consistent in color and result in a stable performance. The pellets are lifted upward and rolled downward repeatedly. This creates vertical tumbling and radial diffusion to achieve uniform blending, ideal for consistent plastic processing.
Specifications
| Model | Power | Capacity (kg) | Rotating Speed (r/min) | Voltage (V) | Dimensions (cm) | Net Weight (kg) | |
| kW | HP | ||||||
| 0.75 | 1 | 25 | 85 | 380 3Ø | 73×70×95 | 83 | |
| 1.5 | 2 | 50 | 85 | 380 3Ø | 85×83×112 | 125 | |
| 3 | 4 | 100 | 85 | 380 3Ø | 100×100×129 | 180 | |
| 4 | 5.5 | 150 | 85 | 380 3Ø | 113×113×131 | 270 | |
| 5.5 | 7.5 | 200 | 85 | 380 3Ø | 125×125×139 | 313 | |
| 7.5 | 10 | 300 | 85 | 380 3Ø | 135×135×160 | 400 | |
Features
- Equipped with a cycloidal pinwheel geared motor, offering low noise operation and long service life.
- Achieves uniform mixing within a short time, with low energy consumption and high efficiency.
- The barrel lid and base are stamped and formed for precise fitting and improved durability.
- Built-in automatic stop function with an adjustable timer (0–30 minutes) for controlled mixing cycles.
- Four-wheel vertical structure design, compact in size, easy to move, and convenient for material discharge.
- Detachable mixing paddle and stainless steel mixing chamber for easy cleaning.
- Integrated automatic mixing timer and overload protection function.
- Made with stainless steel barrel, the mixing capacity ranges from 25 kg to 300 kg according to production needs.
Our factory has over 30 sets of CNC lathes in the production of plastic processing equipment, such as feeding sawing machine, CNC gantry machining center, CNC screw milling machine, CNC deep-hole boring machine, and cylindrical grinder. Meanwhile, with the adoption of more technologies into plastic recycling, CAD/CAM continues to grow in importance. Thus during the whole manufacturing process, our experienced engineers and technicians utilize CAD/CAM engineering approaches to optimize the entire operation. This allows us to supply high quality plastic machinery with optimal performance.
