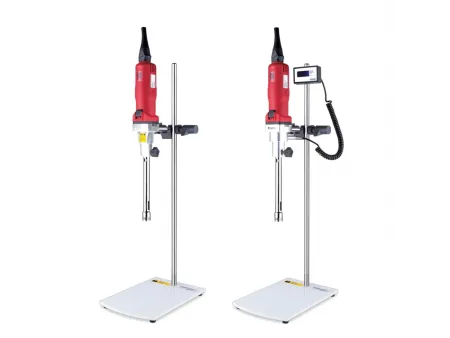

F18 Batch High Shear Mixer
Request a Quote
Pilot scale mixer for emulsification, dispersion, homogenization, and liquid/liquid mixing
This batch high shear mixer features variable speed control and comes with two interchangeable homogenizing probes, allowing it to handle different processing volumes according to laboratory needs. It is ideal for emulsifying, dispersing, homogenizing, and mixing liquids in various applications.
Key Specifications
- Motor power (W) 200
- Power supply 220V, 50Hz
- Mixing capacity (H₂O) (ml) 100-2000
- Max. viscosity (cP) 8000
Specifications
| Model | F18 |
| Motor power (W) | 200 |
| Power supply | 220V, 50Hz |
| Mixing capacity (H₂O) (ml) | 100-2000 |
| Max. viscosity (cP) | 8000 |
| Speed range (rpm) | 300-23000 |
| Speed display | Scale |
| Speed control | Stepless |
| Medium-contact material | SS304 |
| Stirring shaft material | PTFE |
| Standard dispersing tool | 12G, 18G |
| Allowable ambient temperature (℃) | 5 to 40 |
| Allowable relative humidity (%) | 80 |
| Operaiton mode | Batch processing |
| Work frame/stand base | Standard |
| Dimensions (mm) | 225×328×600 |
| Weight (kg) | ≤9 |
Features
The high shear mixer is capable of reaching speeds up to 23,000 RPM, providing powerful mixing performance. It is also compatible with different dispersing tools to accommodate varying processing tasks.
