Wrap around labeler for round containers, bottles and cans

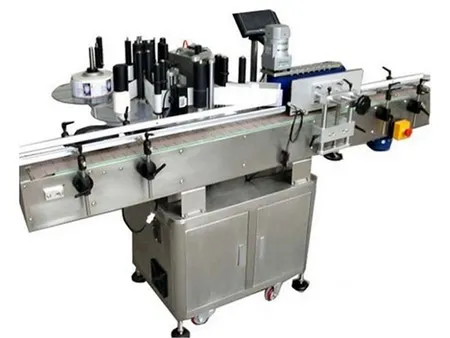

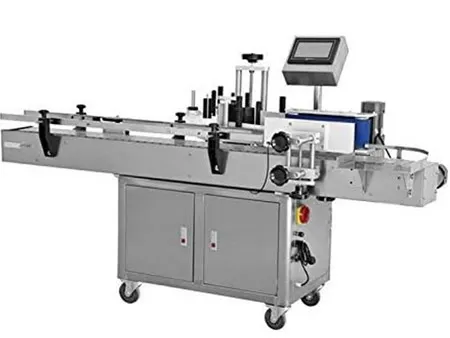

The automatic round bottle labeling machine is designed for applying labels on the circumference of round bottles. It can apply single or double labels, with flexible adjustment for the spacing between front and back labels. It is suitable for labeling round bottles of gel water, food cans, etc., and is widely used in cosmetics, food, pharmaceuticals, disinfectant industries, etc.

Technical Specifications
  • Model: YX-630AA
  • Label Length: 20-314mm
  • Label Width: 15-150mm
  • Container Diameter: ⌀25-⌀100mm
  • Container Height: 25-230mm
  • Label Roll Diameter: ⌀76-⌀280mm
  • Labeling Accuracy: ±1mm
  • Labeling Speed: stepper motor 30-80pcs per minute (depending on sizes of bottle and label), servo motor 40-120pcs per minute
  • Machine Weight: approximately 185kg
  • Frequency: 50HZ
  • Voltage: 220V
  • Power: 530W (traction stepper), 980W (traction servo)
  • Machine Dimensions (L×W×H): 1950×1100×1300mm

*The displayed configuration is standard and can be customized according to specific client requirements.

Working Principle

The product and bottle are separated. When the sensor detects the product passing through, it sends a signal back to the labeling control system. The control system then controls the motor to apply the label to the product. The product is rotated according to the label position, completing the labeling action.

Configurations
Item Model Quantity Brand
PLC 6ES7212-1A 1 Siemens
Touch Panel 6AV6648-01A 1 Siemens
Fiber Optic Sensor (for Bottles) FS-N18N 1 Keyence
Photoelectric Sensor (for Non-Transparent Labels) GS61 1 Leuze
Servo Motor 2004-RZ08BAIAN 1 Allen-Bradley
D Drive 2003-CSD3-08BX2 1 Allen-Bradley
Main Motor 90W1:30 1 JSCC
Bottle Clamping Motor 40W1:30 1 JSCC
Speed Controller 25-90W 2 JSCC
