Label applicator for flat containers, boxes or products with curved surfaces

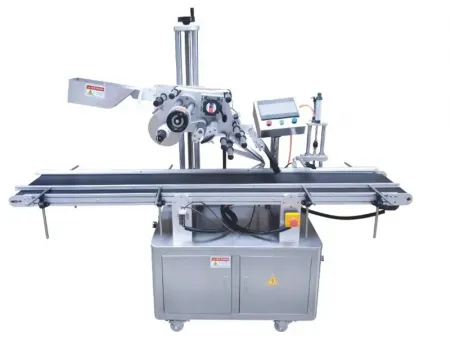

YX-PL510 Automatic Flat Surface Label Applicator

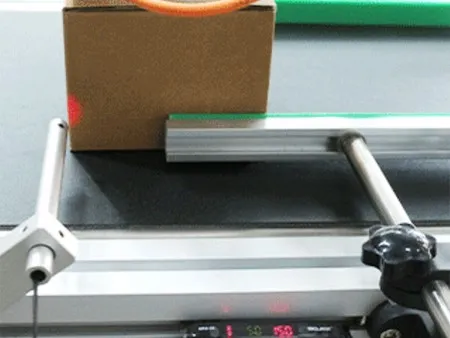

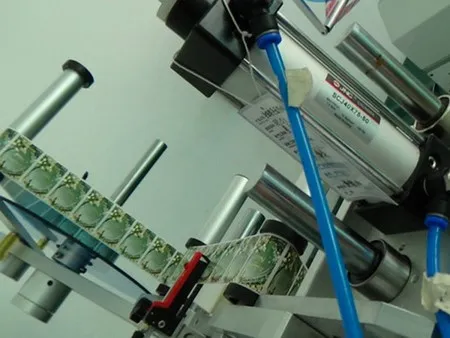

This flat surface labeling machines apply labels or adhesive films on the upper surface of various items such as books, folders, boxes, cartons, etc. Widely used for labeling large products and flat objects with a wide range of specifications. Additionally, the flat surface labeling machine has replaceable labeling mechanism to adapt to labeling on uneven surfaces.

Technical Specifications

Labeling Speed	20-200pcs per minute (depending on product thickness and label length)
Product Size	Height: 30-200mm Thickness: 20-200mm
Label Size	Width: 15-110mm Length: 25-300mm
Label Roll Size	Inner diameter: 76mm Outer diameter: 350mm
Labeling Accuracy	±0.8mm
Power Supply	220V 50/60HZ 0.75kW
Machine Dimensions (L×W×H)	1900×550×1200mm
Machine Weight	150Kg

Features

Operation: Operated via a PLC control system for simple operation.
Materials: The main body of the labeling machine is made of SUS304 stainless steel.
Configuration: Equipped with Japanese motors, photoelectric sensors, and Taiwanese control system.
Flexibility: Optionally includes a printer and coder; can be connected to a conveyor.
