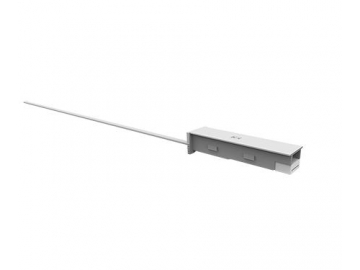

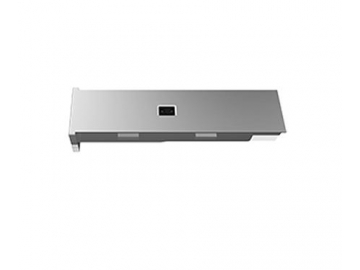

CM1-R1D-A1 LED Dimmer, LED Controller
Request a Quote
Features
- The switch and dimming control can be realized by sweeping hand.
- This LED controller can achieve stepless dimming, making the light regulation richer.
- This controller can be used in 12V and 24V LED strips.
- This LED controller is specially matched with LS1613(B) LED lighting fixture, with convenient assembly and strong overall sense.
- The controller has prevention functions against input reverse connection and output short circuit.
- The high sensitive response speed makes it free of need to wait the control.
- This LED dimmer has excellent capacity of anti-disturbance to make the sensing function not be affected by strong light or other light sources.
- This LED controller has memory function to save the lightness when the light is powered off.
Basic Parameters

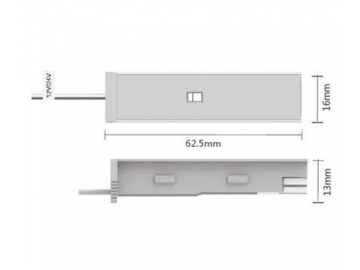

| Size | 62.5×16×13mm |
| Input voltage | 12V-24V |
| Load power | 30W (12V) / 60W(24V) |
| Operating temperature | -20℃～ +40℃ |
| Detecting distance | 5~8cm |
