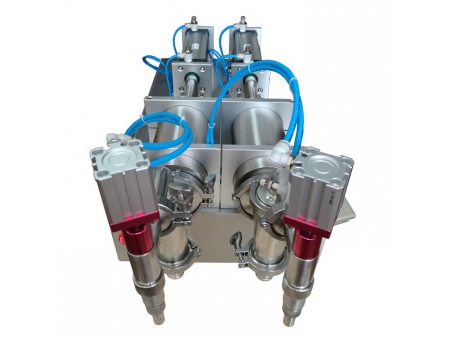

Pneumatic Cream Filling Machine

Pneumatic Cream Filling Machine
Pneumatic Cream Filling Machine
Request a Quote

Applications
The semi-automatic cream filling machine is pneumatically controlled, and is suitable for filling bottles, plastic buckets, metal containers and more with cream, lipstick, perfume, oil syrup, shampoo and other thick, creamy substances. We can provide equipment with filling capacity range of 5-5000ml and filling speed 15-30 times / min. We can also customize based on your specific requirements.

Parameter
CZJ 5-75 Horizontal pneumatic cream filling machine
Filling volume Pressure Velocity Precision
CZJ 5-75 5-75ml 20-50bottle/min ≤±1%
CZJ 15-125 Horizontal pneumatic cream filling machine
Filling volume Pressure Velocity Precision
CZJ 15-125 15-125ml 20-50bottle/min ≤±1%
CZJ 25-250 Horizontal pneumatic cream filling machine
Filling volume Pressure Velocity Precision
CZJ 25-250 25-250ml 20-50bottle/min ≤±1%
CZJ 50-500 Horizontal pneumatic cream filling machine
Filling volume Pressure Velocity Precision
CZJ 50-500 50-500ml 15-50bottle/min ≤±1%
CZJ 100-1000 Horizontal pneumatic cream filling machine
Filling volume Pressure Velocity Precision
CZJ 100-1000 100-1000ml 10-50bottle/min ≤±1%
CZJ 500-2500 Horizontal pneumatic cream filling machine
Filling volume Pressure Velocity Precision
CZJ 500-2500 500-2500ml 10-50bottle/min ≤±1%
CZJ 500-5000 Horizontal pneumatic cream filling machine
Filling volume Pressure Velocity Precision
CZJ 500-5000 500-5000ml 10-50bottle/min ≤±1%

Bleed pressure: 0.5-0.8MPa
Working pressure:0.2-0.5MPa
Gas consumption: 0.05 m3/min
Boundary dimension: 120*30*25cm
Total weight: 20-40kg

Characteristics
1. The piston and cylinder in the filling machine are made of 316L stainless steel and tetrafluoroethylene.
2. The pneumatic filling machine is controlled using a compressed gas drive, making it a suitable choice for use in environments with a high explosion prevention standards and high humidity without sacrificing safety.
3. High precision: The machine is equipped with start control, counter and mechanical positioning, therefore, it features an excellent precision and can be expertly controlled. Data is displayed on an easy to read screen.
4. In case of emergency stop, just press the emergency switch and the piston will automatically resume its initial position and stop filling.
5. According to actual needs, it can freely switch from the "manual" to "automatic" filling state.

Yuxiang as a reliable pneumatic cream filling machine manufacturer and supplier, mainly provides cream filling equipment for cosmetics manufacturing and food manufacturing plant. Our company offer complete lotion and cream process line including mixing, agitating, dispensing, emulsifying, homogenizing, filling and sealing as well as custom solutions. For the different types of materials like lotion, cream, ointment products, our filling machines can be designed and configured in customer needs.
