Pneumatic Heat Press Machine Manufacturer

Pneumatic Heat Press Machine

Request a Quote

View All: http://sublimation-print.com/1-1-10-pneumatic-heat-press-machine.html

Heat transfer machine for printing on fabrics and clothing items

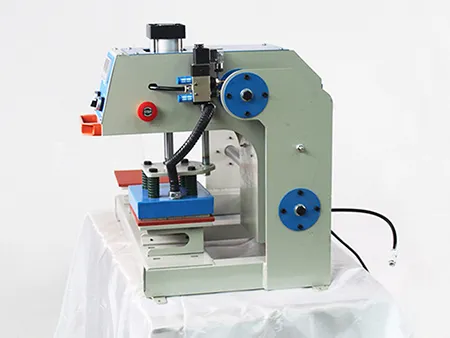

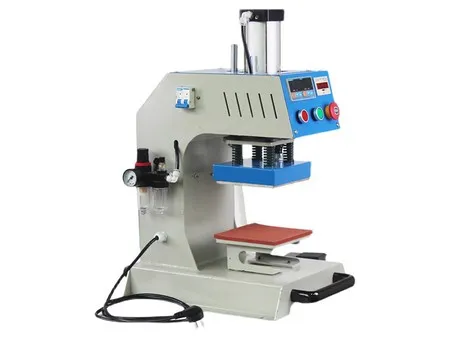

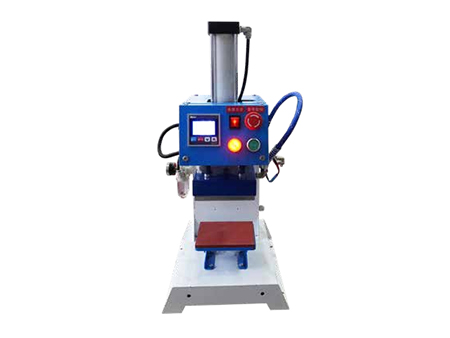

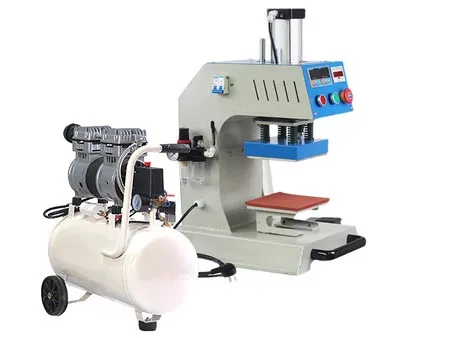

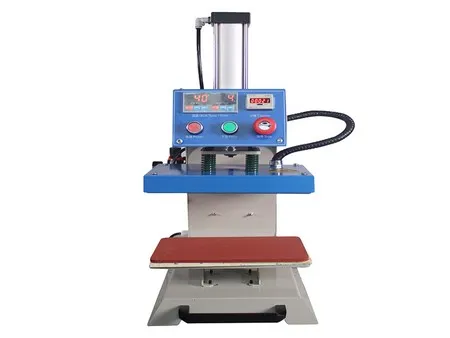

Single Station Pneumatic Heat Press

Voltage: 220V/110V

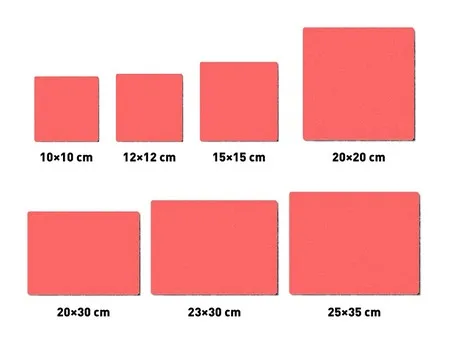

Heating Plate Size: 10×10cm, 12×12cm, 15×15cm, 20×20cm, 20×30cm, 23×30cm, 25×35cm
Net/gross weight: 50-150kg

Applications

The pneumatic heat press machine is widely used to imprint custom designs on various products such as T-shirts, hoodies, sportswear, workwear, home decorations, textiles, backpacks, cosmetic bags, etc.

Our single-station pneumatic heat press machine features a silicone pad made from superior, high-density, and environmentally friendly materials, ensuring superior durability. We also offer a variety of silicone pad options to accommodate the transfer requirements of diverse products.

Features

Equipped with a controller that precisely controls the ascent and descent speed to meet different operational demands.
Includes an emergency stop button for immediate response to any unexpected situations during the heat transfer process, ensuring user safety.
Features a dual-switch design, incorporating both a control panel switch and a foot switch for a more user-friendly and efficient operation.
Utilizes an excellent heating platen that heats up quickly and distributes heat evenly, resulting in a superior hot stamping effect.

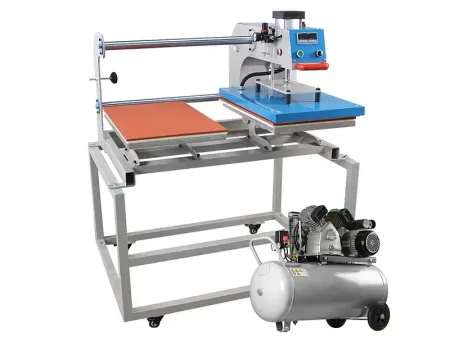

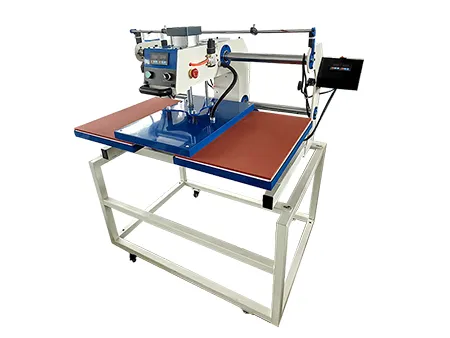

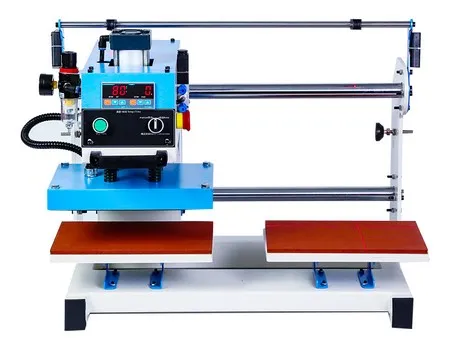

Double Station Pneumatic Heat Press(Standard Type)

Quantity of Station: 2 stations
Voltage: 220V (optional 110V)
Temperature Range: 0-399℃
Time Range: 0-999 seconds
Net/gross weight: 50-200kg
Working Size:
Default: 40×60cm
Customizable: 10×10cm, 12×12cm, 15×15cm, 20×20cm, 20×30cm, 23×30cm, 25×35cm, 40×40cm, 40×50cm, 40×60cm, 50×70cm, 60×80cm, 70×90cm, 80×100cm, 100×120cm, etc.
Laser Positioning: no

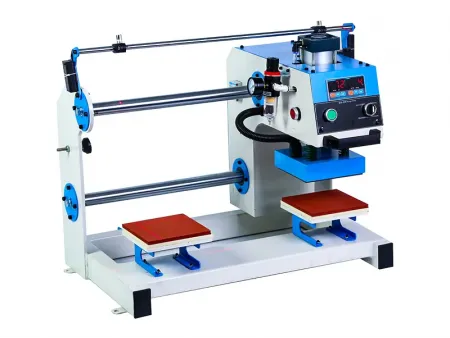

Double Station Pneumatic Heat Press(Infrared Positioning Type)

Quantity of Station: 2 stations
Voltage: 220V (optional 110V)
Temperature Range: 0-399℃
Time Range: 0-999 seconds
Net/gross weight: 50-200kg
Working Size:
Default: 15×15cm
Customizable: 10×10cm, 12×12cm, 15×15cm, 20×20cm, 20×30cm, 23×30cm, 25×35cm, 40×40cm, 40×50cm, 40×60cm, 50×70cm, 60×80cm, 70×90cm, 80×100cm, 100×120cm, etc.
Laser Positioning: yes

The double-station pneumatic heat press machine comes with a silicone pad crafted from high-quality, high-density, and eco-friendly materials, offering exceptional durability. A diverse selection of silicone pad options is available to efficiently meet the transfer needs of a wide array of products.

The machine features a U-shaped groove design that simplifies the clothing setup process, significantly saving time and enhancing productivity during the customization phase.

The machine boasts easy pressure adjustments to cater to various material types, ensuring optimal transfer results across different substrates and enhancing the quality of the finished product.

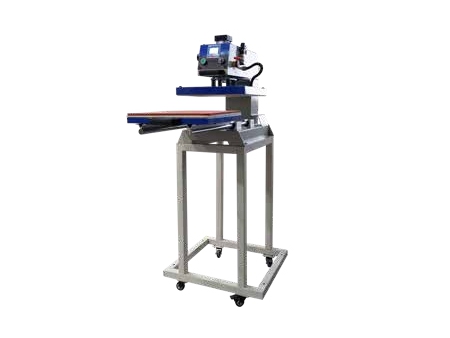

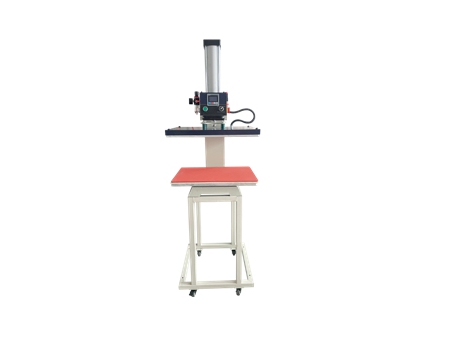

Single Station Pneumatic Heat Press Machine (Slide-out Drawer)

Working Size (cm)	Voltage (V)	Power (kW)	Temperature Range (℃)	Time Range (S)	Packing Size (cm)	Machine Weight (kg)
38x38	220	1500	0-250	0-999	94×71×95	50
40×40	220	1600	0-250	0-999	94×71×95	55
40×50	220	2600	0-250	0-999	94×71×95	60
40×60	220	2600	0-250	0-999	94×71×95	80
50x70	220	6000	0-250	0-999	130×86×114	100
60×80	220	6000	0-250	0-999	130×86×114	200

Single Station Steam Heat Press Machine

Working Size: 15×15cm
Voltage: 220V
Power: 500kW
Temperature Range: 0-250℃
Time Range: 0-999
Packing Size: 60×43.5×75cm
Machine Size: 51.5×31.5×65cm
Machine Weight: 24kg

Single Station Pneumatic Heat Press (Heightened Station)

Working Size (cm)	Voltage (V)	Power (kW)	Temperature Range (℃)	Time Range (S)	Packing Size (cm)	Machine Weight (kg)
25×35	220	500	0-250	0-999	60×43.5×75	29.6
38×38	220	1500	0-250	0-999	105×70×85	80
40×40	220	1600	0-250	0-999	105×70×85	85
40×50	220	2600	0-250	0-999	125×105×85	90
40×60	220	2600	0-250	0-999	125×105×85	140
50×70	220	6000	0-250	0-999	125×105×85	170
60×80	220	6000	0-250	0-999	175×100×95	400

Double Station Steam Heat Press Machine (Sliding Heat Plate)

Working Size: 60x80cm
Power: 7kW
Voltage: 220V
Temperature Range: 0-299℃
Machine Weight: 700kg
Packing Size: 200x100x150cm

Features

The heat press machine is equipped with microcomputer control and a digital display, ensuring precise and straightforward operation.
Automatic control with adjustable pressure allows flexible customization for various printing needs.
The integrated aluminum heating plate ensures even heat distribution for consistent and high-quality results.
The sliding type heat plate is designed for smooth operation, preventing material displacement on the lower platform and improving speed and efficiency.

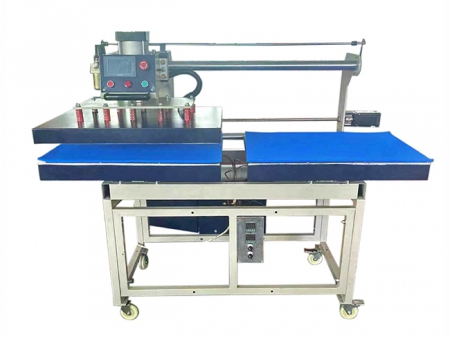

Double Station Pneumatic Heat Press Machine (Sliding Bottom Plate)

Working Size (cm)	Voltage (V)	Power (kW)	Temperature Range (℃)	Time Range (S)	Packing Size (cm)	Machine Weight (kg)
38X38	220	1500	0-250	0-999	105X70×85	80
40×40	220	1600	0-250	0-999	105X70×85	85
40×50	220	2600	0-250	0-999	125×105×85	90
40X60	220	2600	0-250	0-999	125×105×85	140
50×70	220	6000	0-250	0-999	125X105X85	170
60X80	220	6000	0-250	0-999	175×100×95	400

Double Station Steam Heat Press Machine (Sliding Bottom Plate)

Working Size: 40×80cm
Voltage: 220V
Power: 6000kW
Temperature Range: 0-250℃
Time Range: 0-999
Packing Size: 175x100 x95cm
Machine Weight: 170kg
