DAM3-1000 MCCB Molded Case Circuit Breaker
Overview
The rated current of DAM3-1000 molded case circuit breaker can up to 690A, it's generally used in the power distribution circuit to distribute power and protect circuit and power equipment from overloaded, short circuit, under voltage failure damage, in which alternating current 50-60Hz, rated direct-current 1000A.
Compared to the DAM1 series, the DAM3 series are designed for smaller volume, higher breaking capacity, offering better energy savings.
Electrical parameters of DAM3-1000 molded case circuit breaker| Rated current of frame size Inm [A] | 1000 | |||
| Rated current[A] | 630 800 1000 | |||
| Number of poles | 3 / 4 | |||
| Rated operating voltage | (AC)50-60HZ [V] | 400/690 | ||
| DC[V] | 250/1000 | |||
| Rated impulse withstand voltage Uimp[KV] | 8 | |||
| Rated insulation voltage Ui [V] | 750 | |||
| Test voltage at industrial frequency for 1 min [V] | 3000 | |||
| Rated ultimate short-circuit breaking capacity Icu [KA] | N | S | H | |
| (AC)50-60HZ 220/230V [KA] | 55 | 80 | 105 | |
| (AC)50-60HZ 400/415V [KA] | 36 | 55 | 70 | |
| (AC)50-60HZ 690V [KA］ | 15 | 20 | 25 | |
| (DC)250V-2 Poles in series | 35 | 50 | 65 | |
| (DC)500V-2 Poles in series | 18 | 22 | 30 | |
| (DC)750V-4 Poles in series | 30 | 42 | 55 | |
| (DC)1000V-4 Poles in series | 25 | 35 | 45 | |
| Rated service short-circuit breaking capacity, Ics [KA] | ||||
| (AC)50-60HZ 220/230V [%Icu] | 60% | 60% | 60% | |
| (AC)50-60HZ 400/415V [%Icu] | 60% | 60% | 60% | |
| (AC)50-60HZ 690V [%Icu] | 60% | 60% | 60% | |
| Category of utilisation(EN 60947-2) | A | |||
| Isolation condition | Bitmap | |||
| Reference standard | IEC/EN 60947-2/GB 14048.2 | |||
| Interchangeability | Bitmap | |||
| Versions | Fixed | Bitmap | ||
| Plug-in | Bitmap | |||
| Draw-out | Bitmap | |||
| Endurance | Total cycles | 5000 |
| Electrical endurance | 1000 | |
| Mechanical endurance | 4000 | |

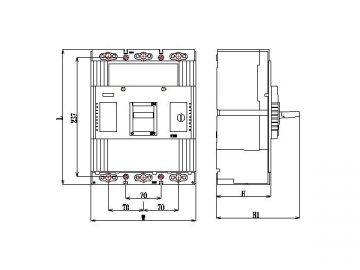

Basic dimensjons-fixed version | 3/4 Poies W[mm] | 210/280 |
| 3/4 Poies H[mm] | 108.5 | |
| H1[mm] | 167 | |
| 3/4 Poies L[mm] | 268 |
Introduction
The DAM3-1000 molded case circuit breaker automatically cuts off the current when the current exceeds the release setting. The molded case refers to the plastic insulator used as the frame of the device to insulate the conductor and the metal grounding component.
DADA company manufactures miniature electrical switches such MCB Circuit breakers, RCD circuit breakers, ELCB breakers, RCBO, RCB circuit breakers, molded case circuit breaker, DADA started miniature circuit breaker manufacturing from 2004, already offered million various electrical circuit breakers into global markets for different electrical MCB breaker clients.
