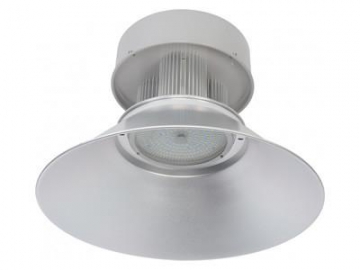

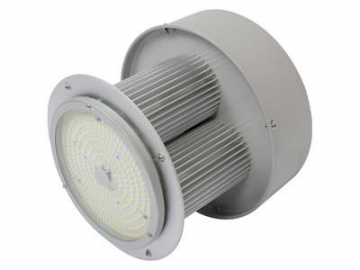

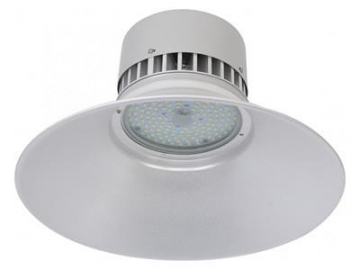

SMD LED High Bay Light

Request a Quote

View All: http://mf-ledlights.com/2-7-2-linear-led-high-bay-lights.html

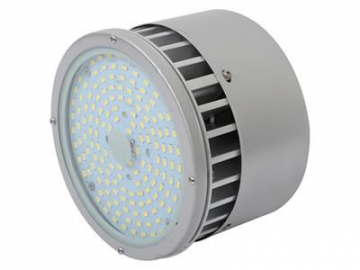

The SMD LED high bay light from SHCET features a robust housing made of corrosion-resistant die-cast aluminum, and light source incorporates 5730 SMD LEDs with a high efficiency lumen. It is applicable to a wide range of industrial and commercial lighting, such as warehouses, factories, showrooms, workshops, supermarkets, parking lots and other buildings with high ceilings.

CET-120A-50W SMD LED High Bay Light
Model: CET-120A-50W SMD
Power: 50W
IP: IP40
LED Chips:100pcs 5730SMD
Lamp Flux(LM): 6000
CET-120A-80W SMD LED High Bay Light
Model: CET-120A-80W SMD
Power: 80W
IP: IP40
LED Chips:160pcs 5730SMD
Lamp Flux(LM): 9600
CET-120A-100W SMD LED High Bay Light
Model: CET-120A-100W SMD
Power: 100W
IP: IP40
LED Chips:200pcs 5730SMD
Lamp Flux(LM): 12000
CET-120A-150W SMD LED High Bay Light
Model: CET-120A-150W SMD
Power: 150W
IP: IP40
LED Chips:300pcs 5730SMD
Lamp Flux(LM): 18000
CET-120A-200W SMD LED High Bay Light
Model: CET-120A-200W SMD
Power: 200W
IP: IP40
LED Chips:400pcs 5730SMD
Lamp Flux(LM): 24000

Details

Features

The light uses a waterproof LED driver, with dimming and timing functions.

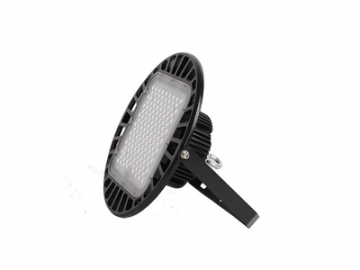

The high bay/low bay LED lighting features a die cast aluminum housing, which features an excellent heat dissipation that will extend the LED lighting service life.
The LED light is environmentally friendly, as it does not contain any Pb or Hg elements.

Detailed Parameters

Lamp Material	Die Cast Aluminum+Glass
Beam Angle	120°
IP Rating	IP65 or IP66
Surge Protection	4KV-6KV-10KV
LED Chip	3030SMD or COB
CRI	Ra＞70
Power Factor	＞0.95
Input Voltage	AC85-277V
Body Color	Black, Grey, customized
Color Temperature	3000-3500K, 4000-4500K, 5000-5500K, 6000-6500K;
