ESD Antistatic Wrist Strap Manufacturer

ESD Antistatic Wrist Strap

Request a Quote

View All: http://nonwoven-materials.com/9-2-antistatic-nonwovens.html

Description:
The inner layer of the ESD antistatic wrist strap is woven using antistatic yarn in order to quickly dispense any static electricity generated by the human body. The wrist strap is primarily used in workplaces and dust free rooms with strict requirements about static electricity.

Components:
elastic strap, adjustable button, coil cord, protective resistor and plug or clip.

We provide elastic ESD antistatic wrist strap, metal ESD antistatic wrist strap and dual-loop ESD antistatic wrist strap.

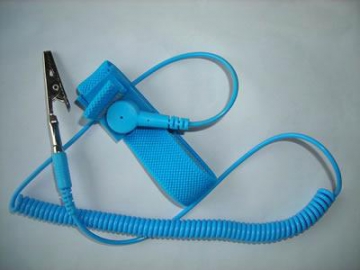

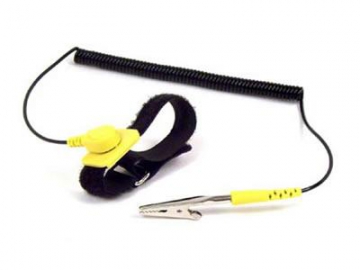

Elastic ESD antistatic wrist strap

Material	Plastic sheet (ABS) and coil cord adopt high transparent plastics raw material.
Color	Black, blue, light-blue, wine red
Coil	The outer covering is made of PVC, and inside is a 7-core copper platinum wire. The injection head on the both ends of the coil cord uses a special elastic material with 1MΩ safe resistor to make it safe and durable.
Ribbon length	20-24cm (the length can be customized)
Wrist strap resistance	≤10³ Ω
Coil length	1.8m ,2.0m.2.4m (the length can be customized)
Injection head material	PU
Plug	Banana plug and alligator type
Button type	Brass button
Male snap	Brass snap

Metal ESD antistatic wrist strap

Wrist strap	Stainless elastic brand
Specification	Adjustable
Color	Metal color
Strap	thickness: 17.5 mm, length: 15.3cm
Plastic head	adjustable ABS plastic slip-sheet
Hardware type	Stainless steel
Coil	The outer covering is made of PVC, and inside is 7-core copper platinum wire. The injection head on the both ends of the coil cord adopts special elastic material with 1MΩ safe resistor to make it safe and durable.
Coil length	1.8m ,2.0m.2.4m (the length can be customized)
Injection head material	PU
Plug	Banana plug and alligator plug

Dual-loop ESD wrist strap

The main parts	it is made of ABS rubber compound.
Rubber of wrist strap	It is mix-woven by 20 silver-plated conductive yarn and the rubber, and the length of the strap is adjustable.
Material	Elastic nylon and metal conductive fiber
Color	Sapphire blue
Wrist strap resistance	≤10³ Ω
Coil parameter	PU wire with 7-core copper platinum wire inside.
Male snap	Brass snap
Wire diameter	2.5mm
Wire length	2.5m
Safe resistor	1MΩ

Index
ESD tool, antistatic tool, electrostatic body protection, protective strap
