Halogen-free Modified Polyolefin Heat Shrinkable Tubing
Request a Quote
View All: http://heatshrink-tubing.com/4-8-halogen-free-modified-polyolefin-heat-shrinkable-tubing.html

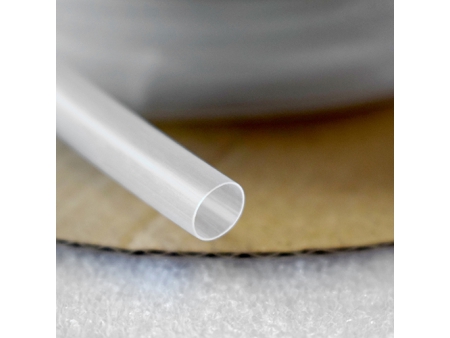

Halogen-free Modified Polyolefin Heat Shrinkable Tubing, RSFR-MT-LWA-105H
Medical grade heat shrink tubing
Model: RSFR-MT-LWA-105H
RSFR-MT-LWA-105H halogen-free modified polyolefin heat shrinkable tubing is designed for process assistance in minimally invasive medical devices. The homogeneous structure contributes to the consistency and high performance of the medical grade heat shrink tubing, making it essentially free from defects, pinholes, seams, cracks or flaws.
This halogen-free modified polyolefin heat shrinkable tubing is provided with a customizable shrink rate (up to 4:1). Our MT-LWA-105H heat shrinkable tube has unique properties that allow it to be easily removed when heated over a specific temperature, making it an optimal alternative to FEP heat shrink tubes.
Features
- Shrink rate: ＞2:1
- Operating temperature: -40°C ~ 105°C
- Initial shrink temperature: ≥ 90℃
- Superior electrical insulation
- Compliant with ISO 10993-1
- Easy to be removed after application, good axial tear expansion
- No heavy metals
- Environmental standard: RoHS compliant
- Standard color: transparent
Properties
| Performance | Test standard | Standard Performance |
| Longitudinal change rate (%) | ASTM D 2671 | -10~ 5 |
| Tensile strength (MPa) | ASTM D 2671 | ≥10.4 |
| Elongation at break (%) | ASTM D 2671 | ≥200 |
| Cold bending (-30℃, 1h) | ASM-DTL-23053 | No cracks |
| Withstand voltage | UL224 | 4000V,1min, no breakdown |
| Volume resistivity (Ω.cm) | IEC 60093 | ≥1015 |
| Part No. | As Supplied I.D (mm) | Recovered Size | |
| Inside Diameter, Max (d) | Wall Thickness (W) | ||
| (mm) | (mm) | ||
| RSFR-MT-LWA-0.8 | 1.02±0.13 | ≤0.35 | 0.28±0.05 |
| RSFR-MT-LWA-1.2 | 1.40±0.13 | ≤0.50 | 0.41±0.08 |
| RSFR-MT-LWA-1.6 | 1.83±0.13 | ≤0.70 | 0.51±0.08 |
| RSFR-MT-LWA-2.4 | 2.72±0.20 | ≤1.05 | 0.51±0.08 |
| RSFR-MT-LWA-3.2 | 3.56±0.25 | ≤1.45 | 0.51±0.08 |
| RSFR-MT-LWA-4.8 | 5.21±0.25 | ≤2.20 | 0.51±0.08 |
| RSFR-MT-LWA-6.4 | 6.99±0.38 | ≤3.00 | 0.64±0.08 |
| RSFR-MT-LWA-9.5 | 10.54±0.51 | ≤4.30 | 0.64±0.08 |
