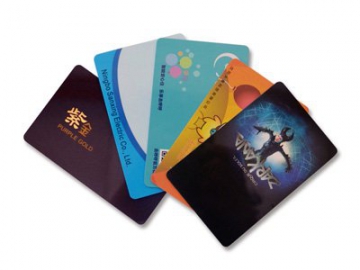

Custom-made RFID smart card includes low frequency RFID card, high frequency RFID card and ultra-high frequency RFID card. You can customize their materials, sizes, chip types and so on to meet your special requirements.

UHF RFID Cards

remote reading, waterproof, corrosion resistant, easy to use
multi-tag identification, high sensitivity to carry identification tags with korfball unique identification code
mainly for enterprise / campus card, bus card, highway fees, parking, residential management

● Basic parameters
Types	UHF passive tags
Working frequency	860-960MHz
Protocol	ISO / IEC 18000-6C EPC Class1 Gen2
● Physical parameters
Size	86 * 54 * 0.9mm or customized
Packaging Materials	PVC, PET
Antenna	Aluminum etching antenna
Craft 4C offset print,Silk screen print, Inkjet print, Foil stamp, Encoding, Punch hole,etc
● Performance parameters
Chip	Alien H3, impinjM4D / M4E / M4QT / M5
Storage	Related to the chip	Operating mode	Can read and write
Data retention	> 10 years
Endurance	100,000 times
Reading distance	0-10m (the reading range is related to the working condition and reader)
● Environmental parameters
operating temperature	(-25 ℃ ~ + 55 ℃)
Storage temperature	(-35 ℃ ~ + 75 ℃)
● Typical applications
Applications	Identification,Attendance System,Access control system,Membership management,Toll collect system
● Package
Packaging Information	200pcs / box

HF RFID Card

anti-interference ability, waterproof, corrosion resistant, easy to carry
identify stability penetration, has Korfball unique identification code
mainly for enterprise / campus card, bus card, highway fees, parking field, residential management

● Basic parameters
Types	High-frequency passive tags
Working frequency	13.56MHz
Protocol ISO14443A, ISO15693
● Physical parameters
Size	86 * 54 * 0.8mm or customized
Packaging Materials	PVC, PET
Process mode antenna	Aluminum etching antenna, copper coil
Craft	4C offset print, Silk screen print, Inkjet print,Foil stamp, Encoding, Punch hole
● Performance parameters
Chip	S50 / S70, Ultralight EV1 / Ultralight C, NTAG213 / 216, I CODE SLIX, FM1108
Storage	Related to the chip	Operating mode	Can read and write
Data retention	> 10 years
Write Endurance	100,000 times
Reading distance	0-5cm (the reading range is related to the working condition and reader)
Environmental parameters
Operating temperature	(-25 ℃ ~ + 55 ℃)
Storage temperature	(-35 ℃ ~ + 75 ℃)
● Typical applications
Applications	Identification,Attendance System,Access control system, Membership management,Toll collect system
● Package
Packaging Information	200pcs / box

LF RFID Card

anti-interference ability, waterproof, corrosion resistant, easy to carry
identify stability penetration, has Korfball unique identification code
mainly for enterprise / campus card, bus card, highway fees, parking field, residential management

● Basic parameters
Types	Low-frequency passive card
Working frequency	125KHz
Protocol None
● Physical parameters
Size	86 * 54 * 0.9mm or customized
Packaging Materials	PVC, PET
Process mode antenna	Aluminum etching antenna, Copper coil
Printing, screen printing, coding, stamping, write data, drilling, etc.		● Performance parameters
Chip	EM4200, EM4305, HT4168, T5577
Storage	Related to the chip	Operating mode	Can read and write
Data retention	> 10 years
Endurance	100,000 times
Reading distance	0-5cm (the reading range is related to the working condition and reader)
● Environmental parameters
operating temperature	(-25 ℃ ~ + 55 ℃)
Storage temperature	(-35 ℃ ~ + 75 ℃)
● Typical applications
Applications	Identification, attendance systems, access control systems, personnel management, accounting management, etc.
● Package
Packaging Information	200pcs / box
