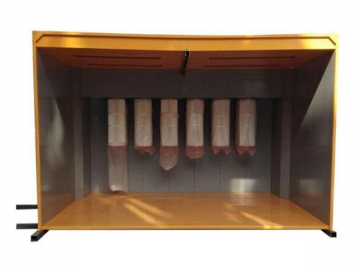

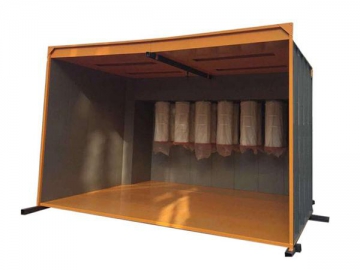

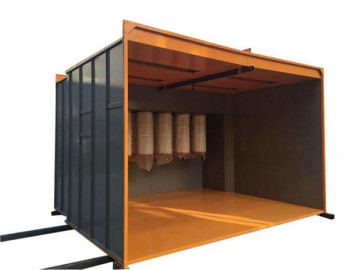

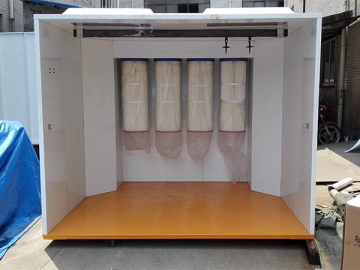

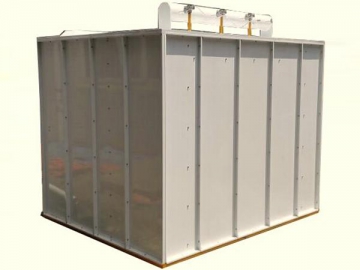

Walk-in Powder Coating Booth

Walk-in Powder Coating Booth
Walk-in Powder Coating Booth
Walk-in Powder Coating Booth
Walk-in Powder Coating Booth
Walk-in Powder Coating Booth
Walk-in Powder Coating Booth
Walk-in Powder Coating Booth
Request a Quote

Features
1.Walk-in booths are ideal for coating large, bulky and heavy parts.
2.As the name suggests, after the parts are placed into the coating booth, the operator walks in and coats the parts from all sides.
3.These parts are then conveyed directly into the powder curing oven.
4.These booths are used for control panels, cabinets, large iron cast products, etc.
5.The walk-in booths also can be equipped with a mono cyclone as a recovery system.

Technical Parameters of COLO-S-3222 Walk-in Powder Coating Booth
Model COLO-S-3222
Booth type Walk in
Operation dimensions 3000width x 2000 height x 1700 depth
Overall dimensions 3080width x 2080 height x 2200 depth
Weight 450kg
Power supply Electric
Nominal power 3.5kW
Voltage 380V
Frequency 50-60Hz
Filters Polyester
Filters quantity 4
Filters hang type Easy for change
Filter cleaning system Pneumatic
Warranty 12 months
Technical Parameters of COLO-3924 Walk-in Powder Coating Booth
Model COLO-3924
Booth Type Walk-in
Operator dimensions 2440width x 3910 lenght x2440 depth
Weight 750kg
Power supply Electric
Nominal power 5.5kW
Voltage 380V
Frequency 50-60Hz
Filters Polyester
Filters count 6
Filters hang type easy for change
Filter cleaning system Pneumatic
Warranty 12 months
