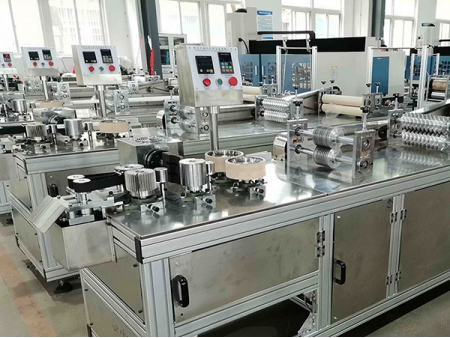

Nonwoven Bouffant Cap Making Machine
Request a Quote
Parameters
| Voltage | 220V |
| Power | 3.5kW |
| Length of Bouffant Cap | 17', 18' (other sizes can be customized) |
| Output Capacity | 60-150pcs/min |
| Overall Dimensions(L×W×H) | 3650×950×1400mm |
Description

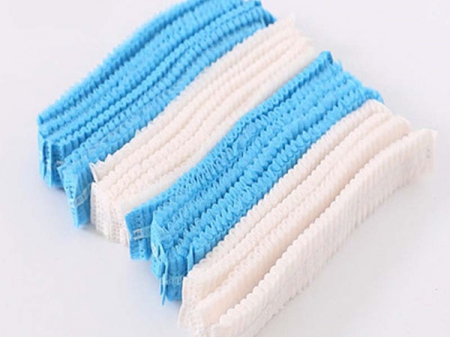

The nonwoven bouffant cap making machine is a special piece of equipment used for the production of elastic non-woven bouffant caps that are often used in hospitals and dust free environments. The equipment features a high degree of automation, including feeding, forming, counting, and collecting. Only one person is needed for operation.
It is used with 9~12gsm thick nonwoven fabrics, and 460~470mm wide raw materials. A single machine has multiple functions, and bouffant caps in various specifications, including a length of 17”, 18”, 19”, 20”, and 21”, can be produced simply by replacing molds.
It operates in a stable manner, with the fastest speed of 150 caps per minute, with a qualified rate of over 99%.
Production Flow
- Automatic Feeding
- Nonwoven Fabric Binding and Welding
- Nonwoven Fabric Folding
- forming Welding
- cutting Off
- finished Products Output
Features
- The overall machine features an aluminum alloy rack that is solid and durable.
- The ultrasonic system features a strong and stable power, making it suitable for longtime continuous operation.
- If the cap strap is broken, the machine will automatically stop, which is safer.
- Easy operation, convenient maintenance.
- Electronic counting, with an automatic shutdown at the set output.
