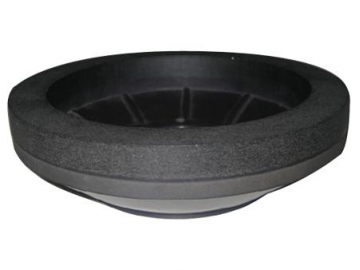

Resin Bond Diamond Wheel for Glass Beveling Machine
Request a Quote
Resin bond diamond wheel for glass beveling machines are primarily used for fine grinding on glass bevel edges after using the regular diamond wheels. Our resin bond diamond wheels for glass beveling machines are made of a mixture of high temperature resistant resin and diamond powers and offer different grit levels.
We have two types of glass beveling machine resin diamond wheels: one is continuous rim and the other is designed with a flume, which directs excess water during operation. We recommend fine grinding in three different levels by increasing the grit number for a better grinding result.

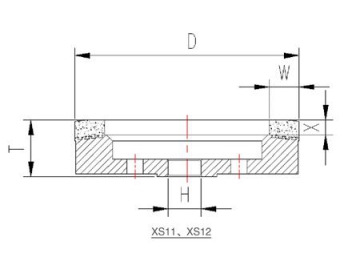

Technical Parameters:| CODE | SEGMENT SHAPE | SPEC | GRIT(#) | ||||
| D | H | W | X | T | |||
| XS11 | Cup/continuous rim | 150 | 12 | 20 | 10 | 38 | 180、240、320、400、500、600 |
| XS12 | Cup with flume | 150 | 12 | 20 | 10 | 38 | 180、240、320、400、500、600 |
| XS21 | Bowl/continuous rim | 150 | 22 | 20 | 10 | 38 | 180、240、320、400、500、600 |
| XS22 | Bowl with flume | 150 | 22 | 20 | 10 | 38 | 180、240、320、400、500、600 |
Remark: Other specs are available upon request.
