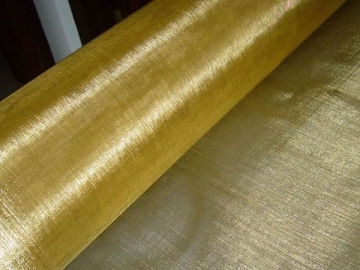

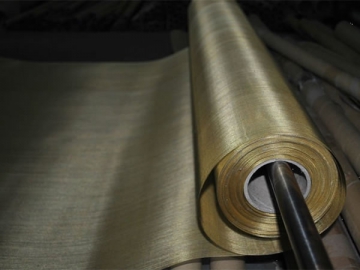

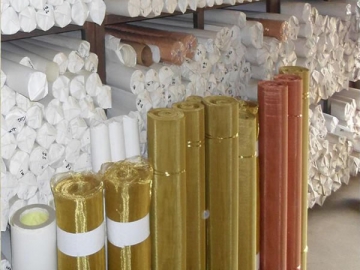

Copper Screen / Copper Mesh / Brass Screen

Brass wire mesh is an alloy of copper and zinc, offering excellent abrasion resistance, corrosion resistance and lower electrical conductivity compared to pure copper mesh. These brass screens are extensively used for sieving various powder materials, porcelain and glass in many different industrial applications.

Material
Brass wire, phosphor bronze wire, or red copper wire

Application
Separation and sifting various granules in industrial applications

Specifications
Brass wire cloth 1mesh/inch-200mesh/inch; copper wire cloth 1mesh/inch-80mesh/inch; phosphor bronze wire cloth 1mesh-400mesh/inch
Width: 0.914M, 1M, 1.5M
Length/Roll: 30M or 100ft

Weaving Methods
Plain weave, twill weave or Dutch weave.

Brass wire mesh H65 H80

Mesh/Inch	Wire Diameter mm	Aperture mm
2	1.6	11.10
4	0.91	5.44
6	0.71	3.52
8	0.50	2.67
10	0.50	2.04
12	0.45	1.66
14	0.40	1.41
16	0.30	1.28
18	0.25	1.16
20	0.25	1.02
30	0.21	0.64
40	0.19	0.45
50	0.15	0.36
60	0.15	0.27
70	0.13	0.232
80	0.12	0.197
90	0.11	0.172
100	0.10	0.154
110	0.09	0.141
120	0.09	0.122
130	0.07	0.125
140	0.07	0.111
150	0.06	0.109
160	0.06	0.098
180	0.053	0.088
200	0.053	0.074
220	0.05	0.065
(width):0.60m-2.9m
