Woven Wire Mesh

Request a Quote

View All: http://mining-screening.com/2-woven-wire-mesh.html

Metal woven wire mesh is the most commonly used wire screen in the industry and features high accuracy of meshes. As one of the companies that establish China’s new standards on mining metal woven wire mesh, DUNPAI produces wire screens with better dimension tolerance than DIN47833 in Europe and ASTM 2016-15 in North America. Our woven wire meshes are established for an anti-abrasion performance and long service life.

Wire Mesh Weave Styles

Double crimped wire mesh (plain weave)
Single intermediate crimped wire mesh
Double intermediate crimped wire mesh
Lock crimped wire mesh
Flat top crimped wire mesh
Long opening wire mesh
Triple shute crimped wire mesh
Woven wire mesh for recycled asphalt screening

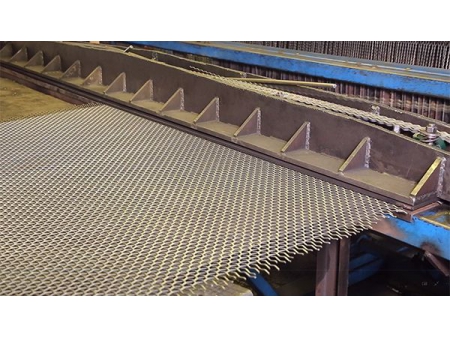

Anti-clogging wire mesh with diamond-shaped openings

Wire Mesh Openings and Wire Sizes

	Lightweight		Intermediate		Heavy-duty
Aperture	Wire Diameter	Opening Area	Wire Diameter	Opening Area	Wire Diameter	Opening Area
2					1.0	44
4	1.6	51	2.0	44	2.2	42
4.5	1.8	51	2.2	45	2.5	41
5	2.0	51	2.5	44	3.0	39
5.6	2.0	54	2.5	48	3.0	42
6	2.0	56	2.5	50	3.0	44
7.1	2.0	61	2.5	55	3.0	49
8	2.0	64	2.5	58	3.0	53
9	2.5	61	3.0	56	4.0	48
10	2.5	64	3.0	59	4.0	51
13	3.0	66	4.0	58	5.0	52
14	3.0	68	4.0	60	5.0	54
16	3.0	71	4.0	64	5.0	58
18	4.0	67	5.0	61	6.0	56
20	4.0	69	5.0	64	6.0	59
22	4.0	72	5.0	66	6.0	62
25	5.0	69	6.0	65	8.0	57
28	5.0	72	6.0	68	8.0	60
32	5.0	75	6.0	71	8.0	64
36	5.0	77	6.0	73	8.0	67
40	6.0	76	8.0	69	10.0	64
45	6.0	78	8.0	72	10.0	67
50	6.0	80	8.0	74	10.0	69
56	8.0	77	10.0	72	12.5	67
63	8.0	79	10.0	74	12.5	70
71			10.0	77	12.5	72
80			10.0	79	12.5	75
90			10.0	81	12.5	77
100			10.0	83	12.5	79
Our wire screen can be customized based on your demands

Applications:

Slotted screens (woven wire mesh) are a type of woven wire mesh with elongated, narrow slot-shaped openings, designed for screening granular materials.

Ore and mineral screening: Ore, coal, sand, crushed stone, mineral sands, etc.
Building and construction material screening: Sand, crushed stone, concrete, lime, cement, etc.
Chemical and plastic pellet screening: Chemical powders, plastic pellets, coatings, fertilizers, etc.
Food processing industry: Grains, coffee beans, sugar, spices, flour, etc.
Waste recycling and environmental protection: Waste plastics, waste paper, metals, garbage, etc.
Oil and gas industry: Oil, natural gas, drilling mud, sand, cuttings, etc.
Water and wastewater treatment: Sewage, wastewater, industrial waste liquids, etc.
