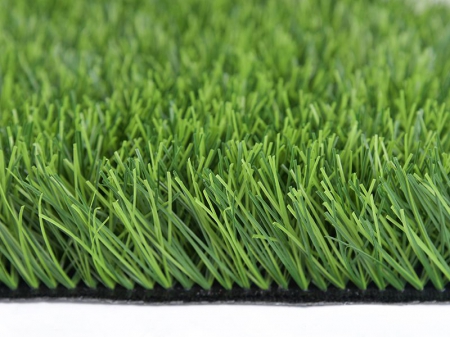

Football Artificial Turf, Umbrella Shape Filament

This football artificial turf is one of the most excellent products we can supply. The secret lies in over 30,000 friction tests conducted through Lisport XL artificial grass test machine. This is why the fake grass features durability, anti-glare and anti-slipping performance. The fibers of this product are thick and the lifespan has been largely improved to over 8 years. This fake turf’s filament has passed FIFA LABORATORY TEST and meets the standards of FIFA Quality & Quality PRO.

Pile Heights: 40-60mm
Dtex: 12000-17500
Thickness: 400μ micron
Color: Yellow green, Field green and Olive green
Lisport: XL 30,000 cycles

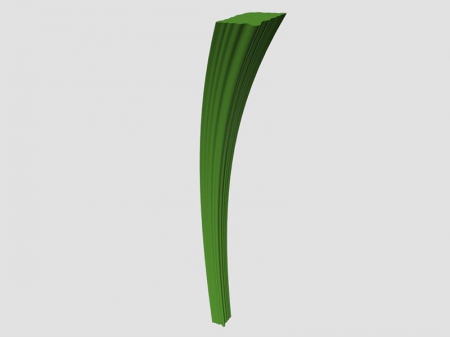

Shape: Umbrella shape
Characters: Less skin friction and abrasion, Slip resistant

Products Specifications (Take TS MAX TURF 60A as an example)

Yarn Characteristics

Product Name	TS MAX TURF 55
Pile Height	55mm
Total Carpet Pile Height	57mm
Yarn Shape	Umbrella shape
Material	PE
Pile Dtex	17000
Quantity of Yarn	8pcs
Pile Width	1.1±0.1
Pile Thickness	390±30
Color	Yellow green, field green, olive green, etc.

Density

Gauge	5/8
Stitch Rate	160 stitches/m
Density	10080 stitches/m²

Characteristics of Geotextile Fabric

Material	PP PP
Color	Black
Weight	306 g/m²

Artificial Turf Infill

Stabilising infill: sand
Material grading: 0.315 - 1.0mm, round shape
Weight: 25kg/m²

Performance infill: rubber granule
Material grading: 0.63 - 2.5mm
Weight: 16 kg/m²

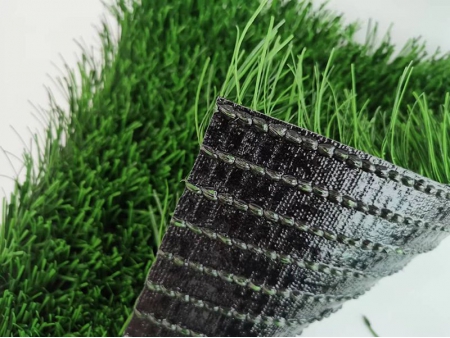

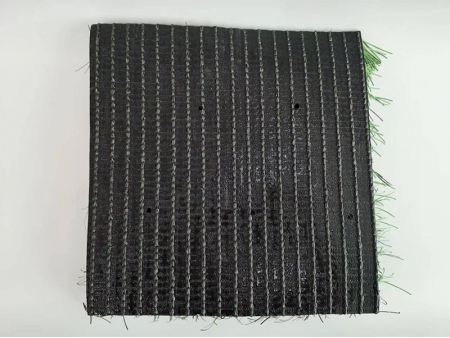

Backing Characteristics

Coating	PU
Glue Weight on the Backing (after Drying)	800 g/m²
Total Weight	3098 g/m²

Turf Characteristics

Roll Width	2m, 3.85m, 4m, 5m
Roll Length	Customized upon request
Tuft Lock	≥35N
Water Permeability	60L/min/m²
Gauge of Drainage Hole	10cm

Case Study

In 2020, our artificial grass has been installed in a sports field in Taiwan, China.

In 2018, our artificial grass has been installed in a sports field in Alicante, Spain.
