Utility Tractor, 90-110HP
Request a Quote
YTO-NLX904-1/NLX954-1/NLX1054-1/NLX1104-1
Features
- The unity tractors with 1.4m wheel track can handle multiple farm tasks, including plowing, transportation, drug delivery and fertilization.
- The 4-cylinder diesel engine with two-stage parallel turbo features high horsepower with less vibration and fuel consumption;
- 12F/4R gears allow for a wide speed range to handle multi-tasks;
- Double action clutches separately control driven wheels and PTO to increase performance;
- The hydrostatic steering unit is highly efficient as they require less power to operate;
- The hydraulic disc brake results in easy-to-control feel as it offers strong stopping power;
- The enclosed cab offers a wide view and a comfortable experience with optional heating and cooling systems;
- Gear shifting synchronizers and air brake systems are optional.

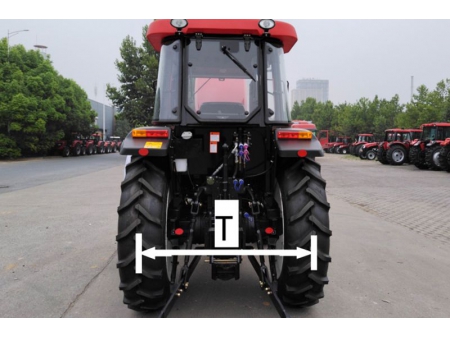

- T=1.4m

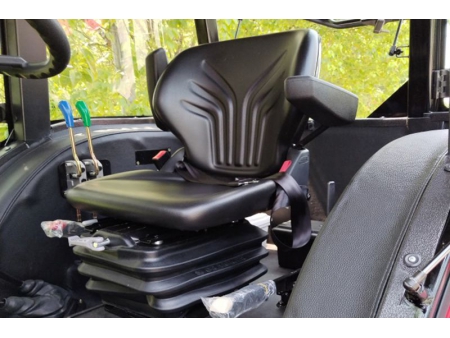

- Suspension seat
- Multifunctional dashboard
- 3 hydraulic multipliers
Specifications
| Model | NLX904-1 | NLX954-1 | NLX1054-1 | NLX1104-1 |
| Engine type | Naturally aspirated 4-cylinder diesel engine | 4-cylinder turbocharged diesel engine | ||
| Rated engine HP (kW) | 66.1 (90) | 70 (95) | 77.2 (105) | 81 (110) |
| Engine speed (rpm) | 2200 | |||
| Clutch | Independent, double action | |||
| Gears | 12F/4R (Option 12F/12R or 24F/8R) | |||
| Speed range (km/h) | 2.2-35.7 | |||
| Brake | Wet, disc | |||
| Rear PTO (rpm) | 540/1000 | |||
| Lift capacity (pivot point) (kN) | ≥23 | |||
| Hydraulic multiplier (set) | 2 or 3 | |||
| Dimensions (L*W*H) (mm) | 4450*1905*2755 | |||
| Wheelbase (mm) | 2314 | |||
| Ground clearance (mm) | 430 | |||
| Wheel track (F/R) (mm) | 1430-1850/ 1400-1700 | |||
| Min. turning radius (m) | 5.6±0.3 | |||
| Tyre (F/R) | 11.2-24/ 15.5-38 | |||
| Min. operating mass (kg) | 3600 | |||
