Utility Tractor, 260-300HP
Request a Quote
YTO-ELP2604/ELP2804/ELP3004/ELZ2804/ELZ3004
Features
- YTO’s tractors are versatile helpers in farming chores as they deliver large traction force and excellent performance;
- The air-cooled 6-cylindered turbocharged diesel engine features high horsepower and low fuel consumption;
- Several gears allow for better performance, high fuel efficiency and a smooth operation;
- The hydrostatic steering unit ensures precise control and requires less operator effort;
- The wet disc brake greatly improves tractor safety;
- The one-button design of the electro-hydraulic PTO and the differential lock enables easy and convenient operation;
- Carraro’s front axle offers the advantages of high reliability and durability;
- The enclosed cab provides operator a wide view and comfortable experience as it is equipped with climate control system.

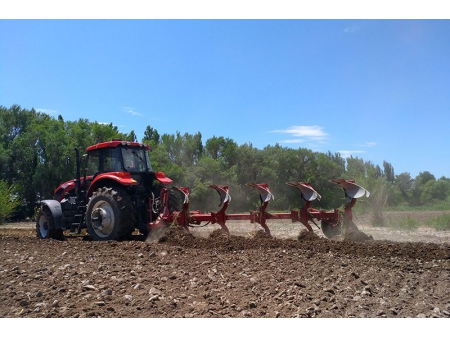

- Ploughing

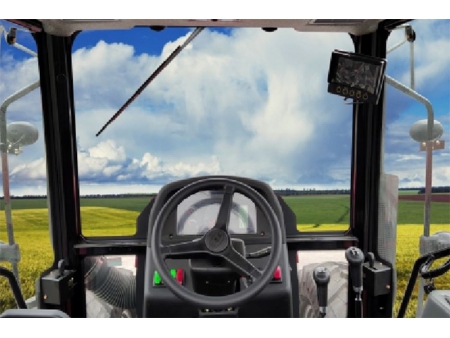

- Wide view
- Suspension seat
- Lift cylinder
Specifications
| Model | ELP2604 | ELP2804 | ELP3004 | ELZ2804 | ELZ3004 |
| Engine type | Air-cooled 6-cylinder turbocharged diesel engine | ||||
| Rated engine HP (kW) | 191.5 (260) | 205 (279) | 220.6 (300) | 205 (279) | 220.6 (300) |
| Engine speed (rpm) | 2200 | ||||
| Clutch | Single-action | Torsional shock absorbers | |||
| Gears | 16F 16R | 40F 40R | |||
| Gear shift mode | Mechanical | Power shift | |||
| Speed range (km/h) | 3.19-38.9 | 0.3-36.8 | |||
| Brake | Wet, disc | ||||
| Rear PTO (rpm) | 540/1000 | ||||
| Lift capacity (pivot point) (kN) | ≥75 | ||||
| Hydraulic multiplier (set) | 4 | ||||
| Dimensions (L*W*H) (mm) | 5730*2890*3500 | 5935*2760*3350 | |||
| Wheel base (mm) | 3104 | 3120 | |||
| Ground clearance (mm) | 460 | 495 | |||
| Wheel track (F/R) (mm) | 1591-2235/1849-2165 | 2050-2250/2050-2300 | |||
| Min. turning radius (m) | 8±0.3 | 10±0.3 | |||
| Tyre (F/R) | 600/70R30; 710/70R42 | ||||
