Description

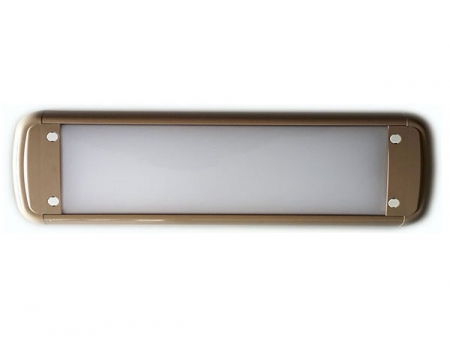

The IDL145 series LED cargo lights/interior light bars are our newest and most powerful LED lights. The oblong LED dome light is ideal for interior lighting applications with a PC light diffusion through a milky lens for a smooth and even light output. Ceiling surface mounted, the aluminum frame on the LED dome light ensures an excellent heat dissipation and a long service life, and its length can be customized.

IDL145 Series

    Operating Voltage: DC12V;10~33V DC;AC90~260V(with external power)
    Operating Temperature: -40~60℃
    Light Source: high light efficiency SMT LED,CRI>80 white color
    Light Color (optional): ~3000K warm white, 4000~4500K natural white, 6000~6500K pure white;
    Or other customized color, Blue light for night is available
    Life time: ~30,000Hs
    Light Emitting Angle: 160°, floodlight type;
    Touch switch is available for the lamp;
    Housing color: white or beige
    Max length: L=3m

    Specification:

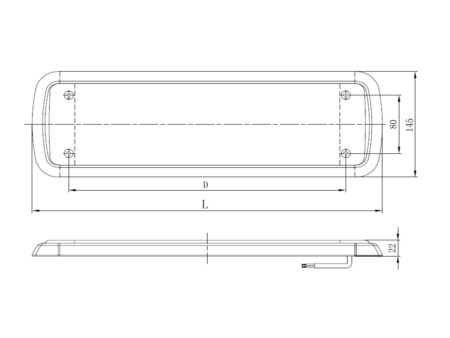

    P/N LED Qty Power Luminous Size L(mm) Size D (mm)
    IDL145-300 120pcs ~10W 1000 lm 300 205
    IDL145-450 192pcs ~16W 1600 lm 450 355
    IDL145-600 240pcs ~20W 2000lm 600 505
    IDL145-1100 480pcs ~40W 4000lm 1100 985

    Applications

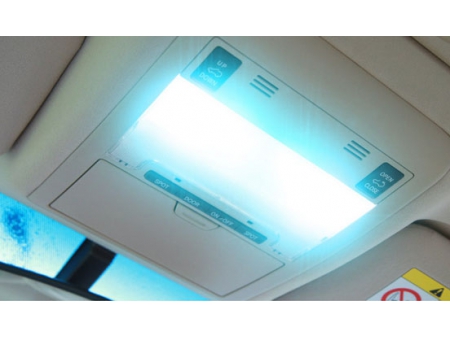

    The oblong LED light is widely used in shelters, cabins, buses, caravans, refrigerator cars, and special vehicles.
