Overwrapper, Type BT-250

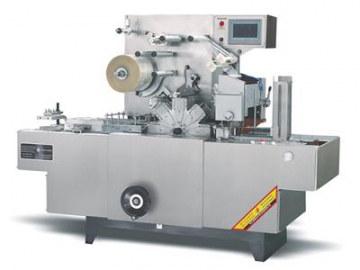

This BT-250 automatic packaging cellophane overwrapping machine uses environmentally friendly OPP or BOPP thin film for packaging hard cartons in a variety of specifications. It carries out organization, packing, heat sealing and counting of cartons. This is done while automatically applying tear tape with anti-counterfeit for easy opening that give the package an excellent moisture and pollution resistance, without sacrificing the easy to use structure.
Application:
This automatic packaging cellophane overwrapping machine is used for the collecting, stacking and wrapping of bulk quadrate items, including cookies, sachima, chewing gum, snack foods and other middle-scale boxed items.
| Productivity | 20-60bag /min |
| Packing dimensions | (40-180)×(30-120)×(10-60)mm |
| Power supply | 220V 50Hz |
| Motor power | 0.75kw |
| Power during electric heating | 4kw |
| Dimensions | 2700×975×1490mm |
| Weight | 1000kg |
- The BT-250 automatic packaging cellophane overwrapping machine uses a mechanical connecting rod driving mechanism, which is not only reliable but durable.
- It uses a stepless variable frequency conversion technology, and is equipped with a fully automatic PLC control system, in order to achieve heat sealing, reshaping, automatic temperature control and automatic feeding.
- Within a designated range, multiple packing specifications in one machine can be set and adjusted, saving the customer money.
- The equipment features a dual transition between manual and automated control, which customers can choose from based on their needs.
- The touch screen displays a number of functions, including program settings, control operation, tracking display, final counting, emergency stop and more.
Optional equipment
HMI-PLC; Electro-optical tracking system; Coding machine
WISELY offers a wide range of pharmaceutical machinery like capsule filling machines, tablet polishers, and pharma packaging machines. The company was founded in 1992 and is a member of the China Association for Pharmaceutical Equipment. We participate in continuous development and have many patents for technologies used in our capsule fillers. We provide customers with high quality pharmaceutical and medical equipment all over the world.
