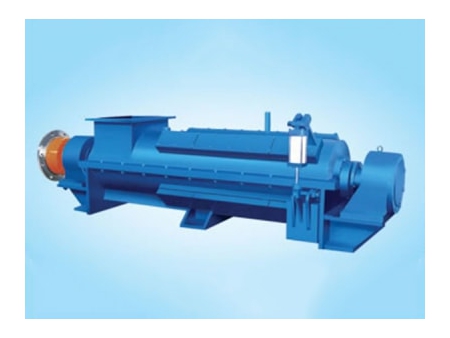

Roll Type Disperser
Request a Quote
The roll type disperser is energy efficient, low priced, easy to maintain and doesn't damage the fibers during operation. Hence, it is widely used in the waste paper recycling, papermaking industries, and is favored by customers in Pakistan, Vietnam, Ecuador, and other countries.
Specifications of Roll Type Disperser
Model | ZDR2 | ZDR3 | ZDR4 | ZDR5 | ZDR6 | ZDR7 |
Production Capacity(t/24h) | 30~40 | 40~60 | 60~80 | 80~100 | 100~150 | 150~200 |
Nominal Diameter(mm) | Φ500 | Φ550 | Φ600 | Φ650 | Φ700 | Φ800 |
Consistency(%) | ≥28 | |||||
Temperature(℃) | 90±5 | |||||
Time(min) | 2 | |||||
Steam Pressure(MPa) | 0.1~0.25 | |||||
Steam Consumption(kg/t) | 150~250 | |||||
Air Compression Pressure(MPa) | 0.7 | |||||
Motor Power(KW) | 90~110 | 110~160 | 160~200 | 200~250 | 250~315 | 280~355 |
Arranging way | Left and right hand |
