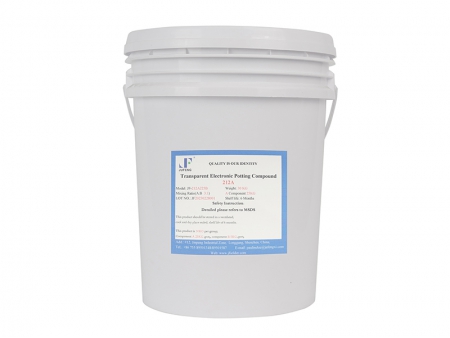

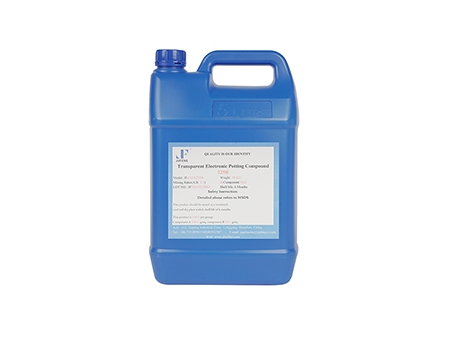

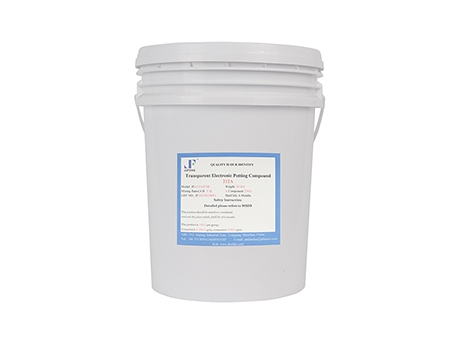

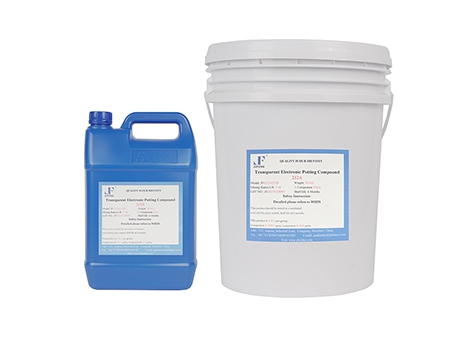

Transparent Electronic Potting Compound, JF-212A225B

Transparent Electronic Potting Compound, JF-212A225B
Transparent Electronic Potting Compound, JF-212A225B
Transparent Electronic Potting Compound, JF-212A225B
Transparent Electronic Potting Compound, JF-212A225B
Transparent Electronic Potting Compound, JF-212A225B
Transparent Electronic Potting Compound, JF-212A225B
Transparent Electronic Potting Compound, JF-212A225B
Transparent Electronic Potting Compound, JF-212A225B
Transparent Electronic Potting Compound, JF-212A225B
Request a Quote

Clear epoxy resin encapsulant is an environmentally friendly epoxy resin adhesive that can be cured at room temperature or moderate temperature, with a moderate curing speed. The cured material has excellent transparency, smooth and glossy surface, no bubbles, moderate hardness, and strong adhesion, as well as good solvent resistance and moisture/waterproof performance.

Application

It is suitable for transparent encapsulation of LED lamp modules, electronic transformers, power module assemblies, sensors, high-voltage packages, electronic component resistors, electronic triggers, and various equipment requiring moisture-proof, waterproof, and high-temperature resistance protection.

Technical Parameters
Appearance and Physical Properties
Model 212A 225B
Color Transparent liquid Transparent liquid
Specific Gravity at 25℃ 1.09 g/cm3 0.93 g/cm3
Viscosity at 25℃ 4200-6000cps 20-30cps
Shelf Life at 25℃ 6 months 6 months
Cured System
Hardness Shore D 80
Bending Strength Kg/mm2 14-15
Tensile Strength Kg/mm2 12-13
Impact Strength Kg/mm2 20-22
Water Absorption at 25℃ $ hours < 0.1
