Clear low viscosity epoxy resin is a type of crystal clear epoxy resin system that cures at room temperature or moderate temperatures. It possesses a low viscosity, good leveling properties, and excellent defoaming performance. The curing process occurs at a moderate speed, resulting in cured material with remarkable transparency, high hardness, smooth surface, brightness, absence of bubbles, and strong adhesion. Additionally, the cured material exhibits good resistance to solvents, impact, and yellowing.

Application

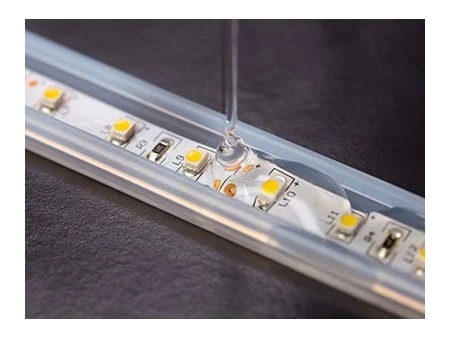

  • Surface coating and drop coating of various metal nameplates, badges, seals, buttons, magnetic buckles, circuit boards, crafts, and other products.
  • Surface encapsulation of other hard products.
  • It is not suitable for drop coating on surfaces of elastic or soft products.
Technical Parameters
Liquid Properties
Item Stand Part A Part B
Appearance Visual Inspection Clear liquid Clear liquid
Viscosity (cps,25℃) GB/T 10247-2008 4000~5000 200~300
Gravity (g/cm3) GB/T 15223-1994 1.1 0.98
Mix Ratio Weight A:B=3:1
Mixed System Viscosity (cps,25℃) GB/T 10247-2008 1500~2500
Useable Life (25℃) GB/T 10247-2008 60min(100g)
Gel Time (25℃) GB/T 10247-2008 6~8 hours
Cure Time (25℃) GB/T 10247-2008 12-16 hours or 60-80℃/1.5-2 hours
Cured System
Item Stand Part A Part B
Appearance Visual Inspection Clear rigid material
Hardness (Shore D,24hr) GB/T 531-2008 70~80
Tensile Strength (kg/cm2) GB/T 6328-1999 12~13
Compressive Strength (kg/cm) GB/T 17517-1998 20~22
Bending Strength(kg/cm) - 14~15
Thermal Deformation Temperature (℃) - 90~105
Water Absorption (25℃,24hr) - < 0.01%
Temperature Range (℃) GBT 20028-2005 -30~130
Shrinkage (%) GB/T 15585-1995 0.35~0.55
Packaging:

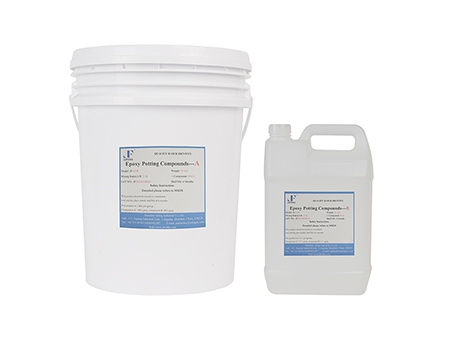

The packaging specification is 20kg per set, which includes 15kg (in barrel) of component A and 5kg (in pot) of component B.
