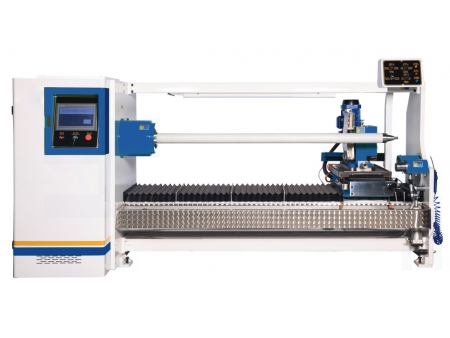

Six-Shaft Automatic Log Slitter, JY-706
Request a Quote
Tape roll slitting machine
This automatic slitting machine is made for high-volume mass production settings, featuring six revolving shafts for continuous slitting and rewinding. This six-shaft slitter supports materials such as BOPP, PV, PE, masking papers, imported high-quality double-sided tapes, kraft paper tapes, foam tapes, duct tapes, industrial adhesive tapes, protective films, etc.
Specifications
| Machine Width | 1.0m, 1.3m, 1.6m |
| Cutting Tolerance | ±0.1mm |
| Max. Cutting Diameter | 120mm |
| Min. Cutting Diameter | 3mm |
| Circular Knife Diameter | Ø160mm |
| Paper Core Diameter | Ø25.4/32/38/76.2mm |
| Main Motor | 9kW/380V-50Hz (depending on country) |
| Air Source | 6 bar |
| Dimensions | 3100×1880×1880mm (machine width 1.3m) |
| Net Weight | ±1800kg |
